Product Details:

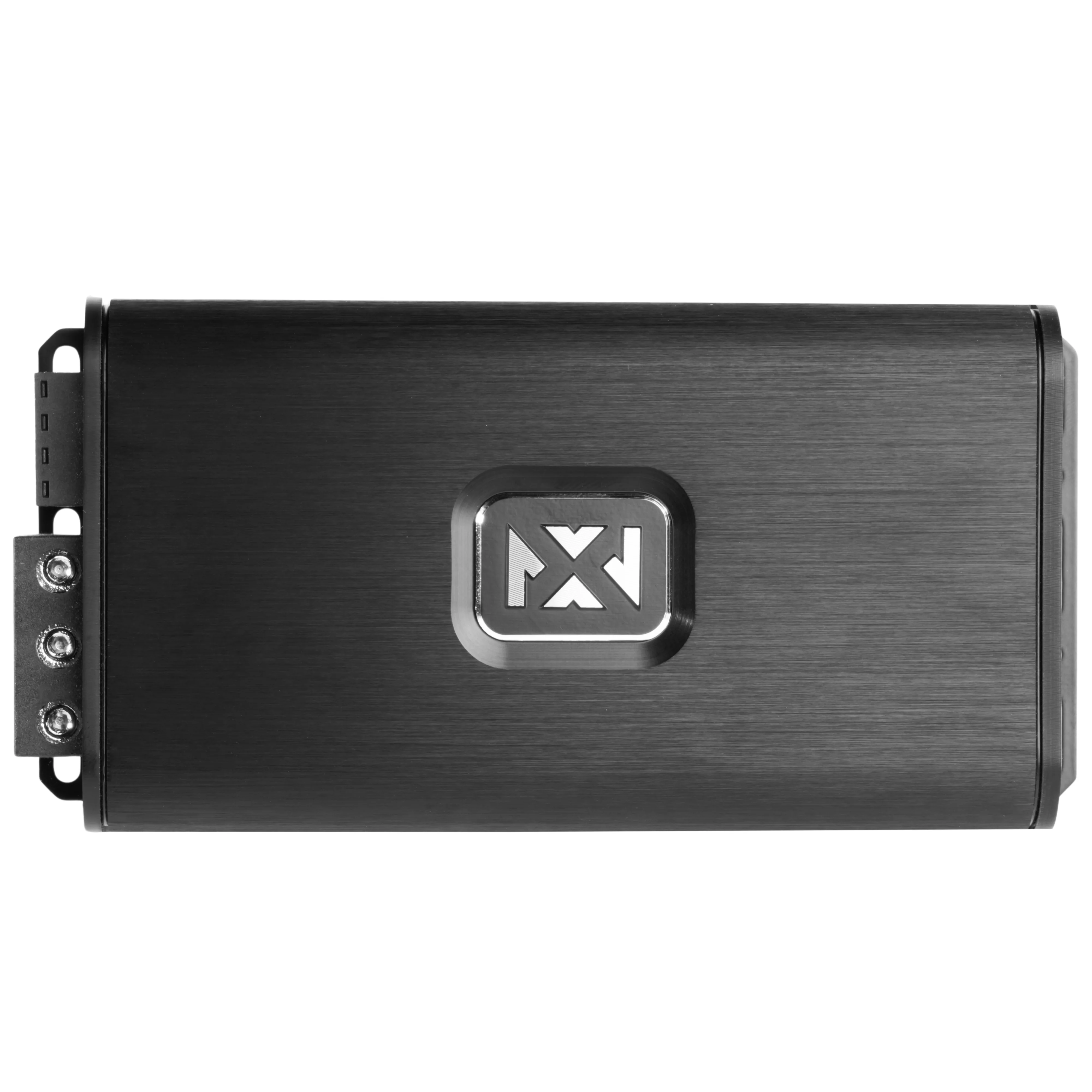

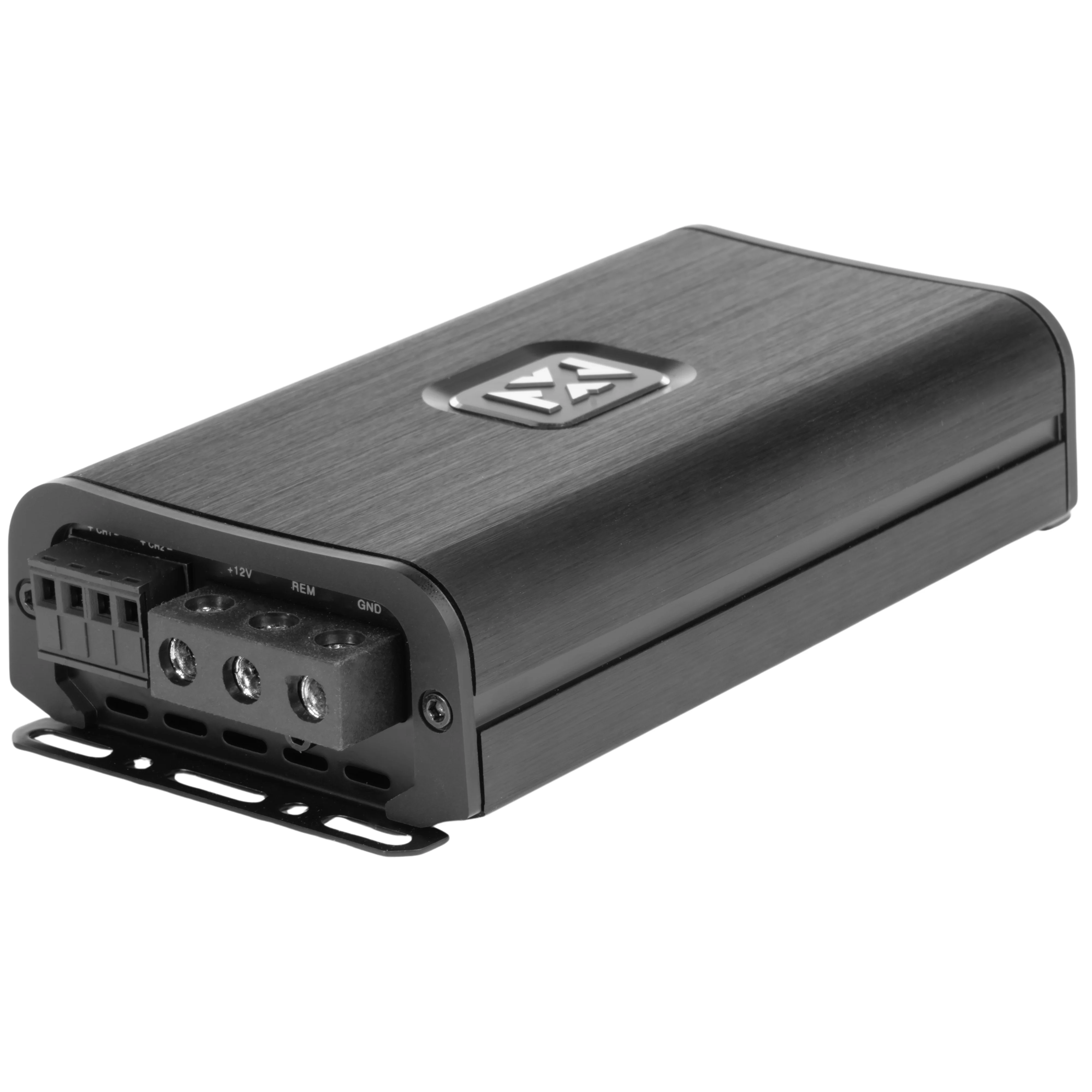

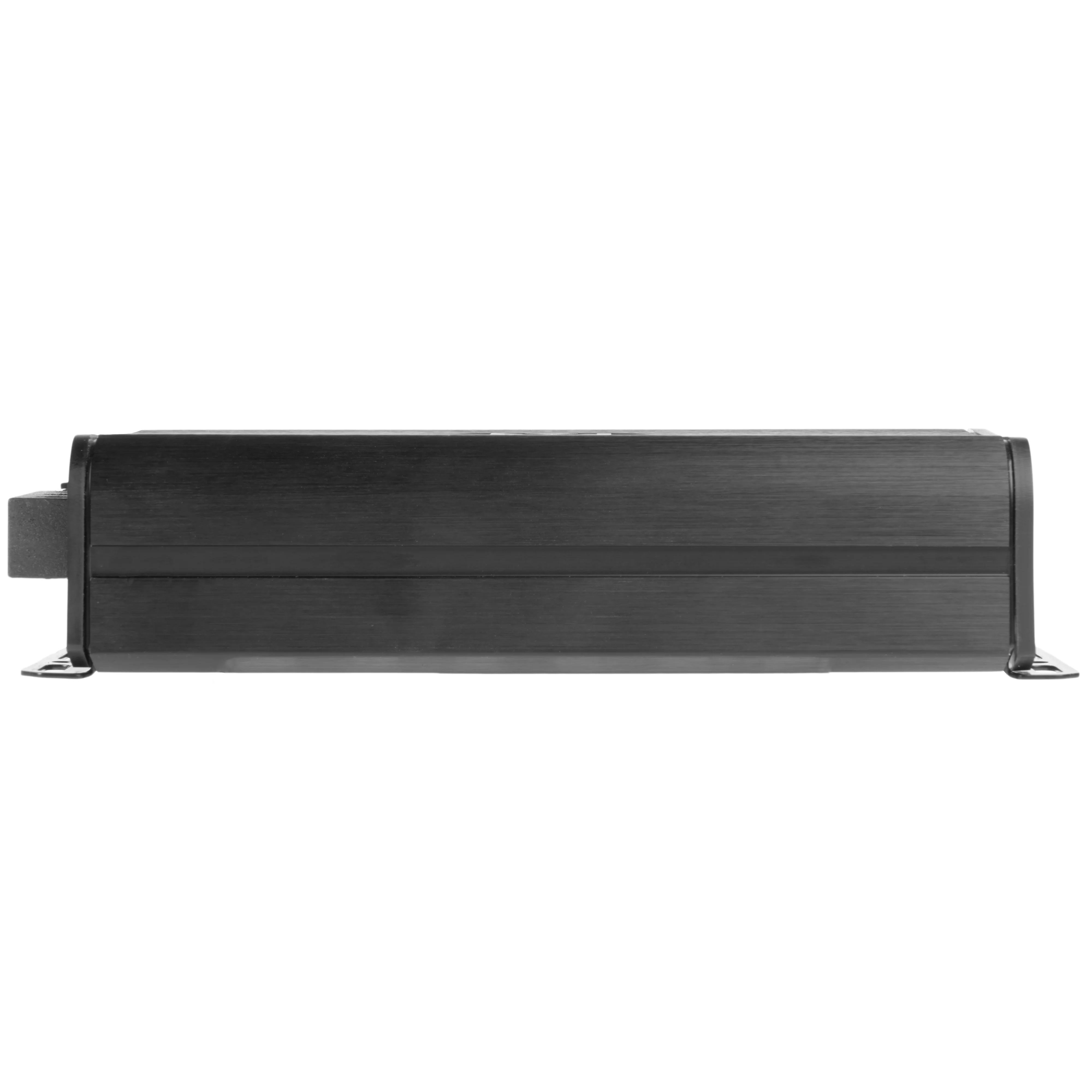

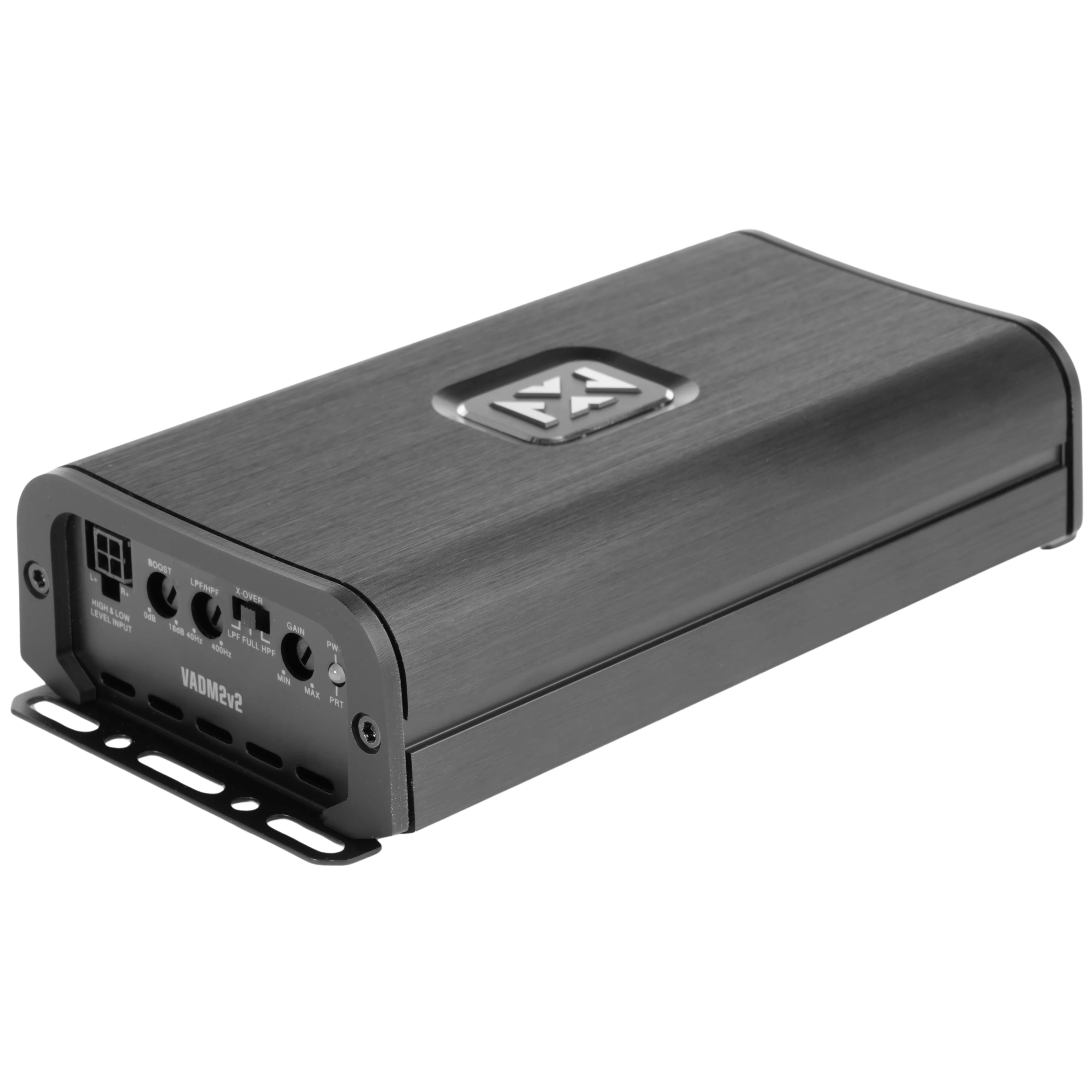

• V-Series Micro Class D 2 ohms Stable 2-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 200 watts x 2 channel
  • 2 ohms: 300 watts x 2 channel
  • Bridged: 600 watts x 1 channel @ 4 ohms
• Total power output: 600 watts

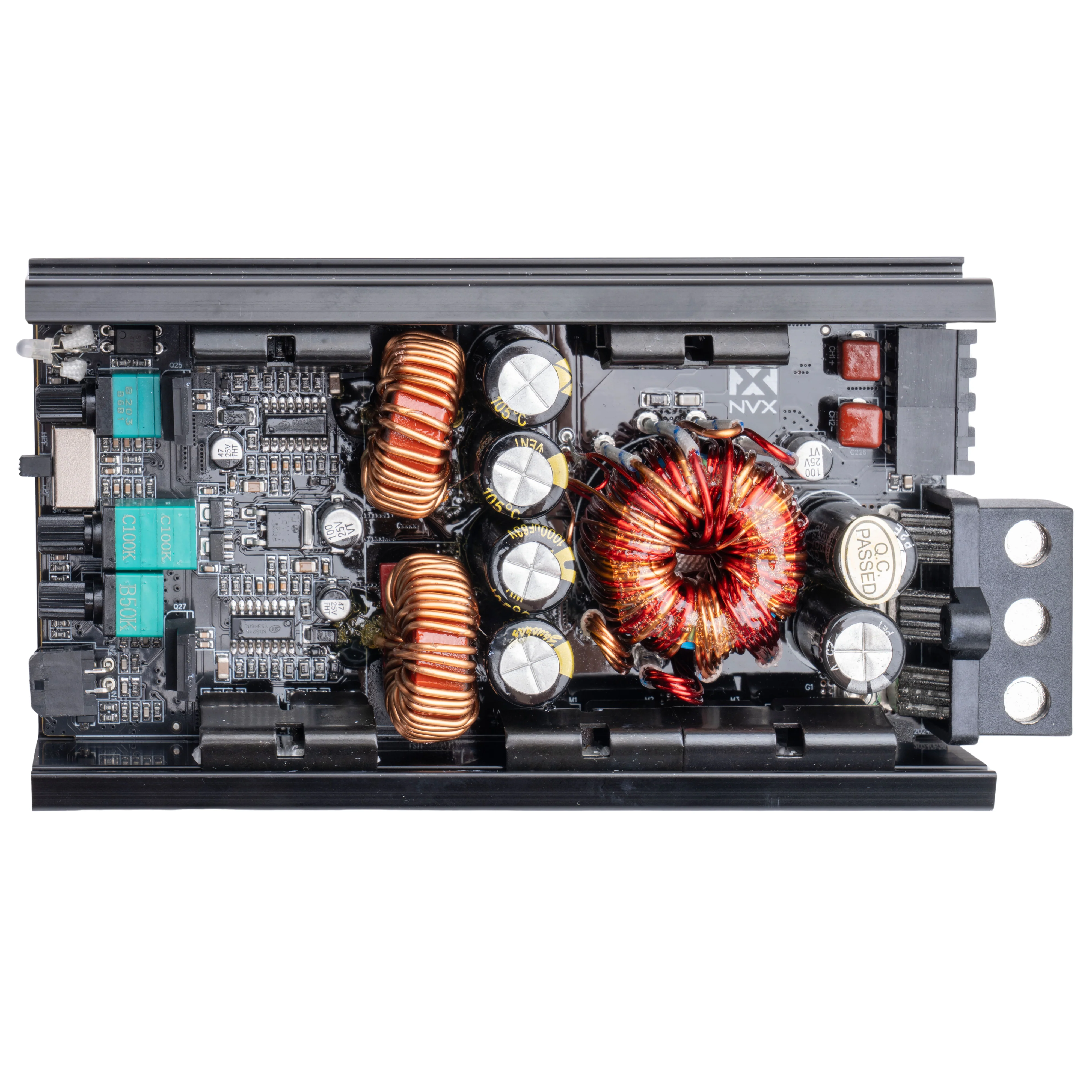

• Conformal Coated Marine grade circuitboard
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
• Balanced differential inputs eliminate noise picked up by signal cables
• Selectable crossover modes: FULL / HPF / LPF
• Crossover Slope: 12dB/octave
• Input sensitivity:
  • Low level and High level: 0.2 - 10 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: >85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 6.49" L x 3.3" W x 1.48" H
• 1-year Warranty from the Original Purchase Date
• MFR #: VADM2v2

 VADMv2 owner’s manual
