Product Details:

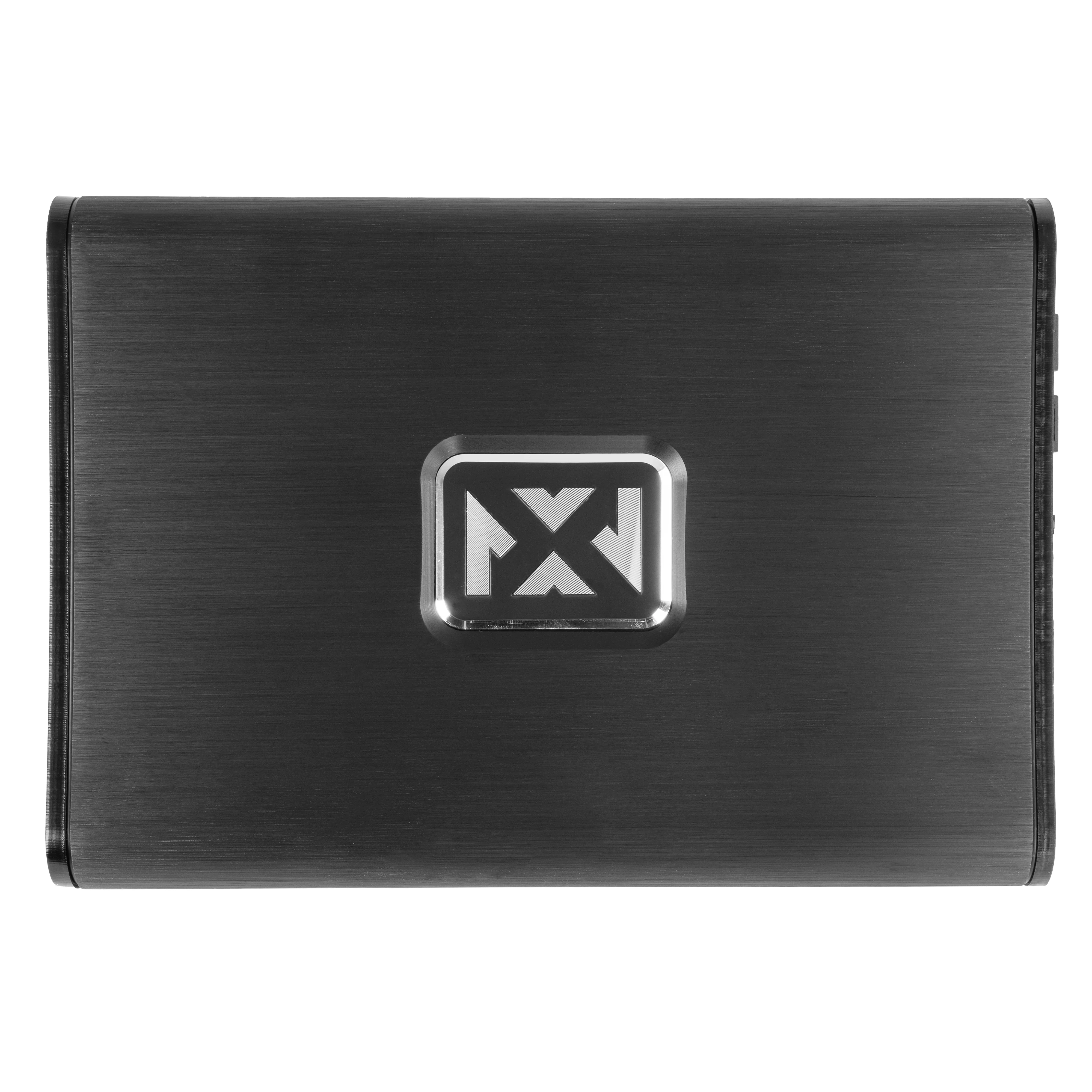

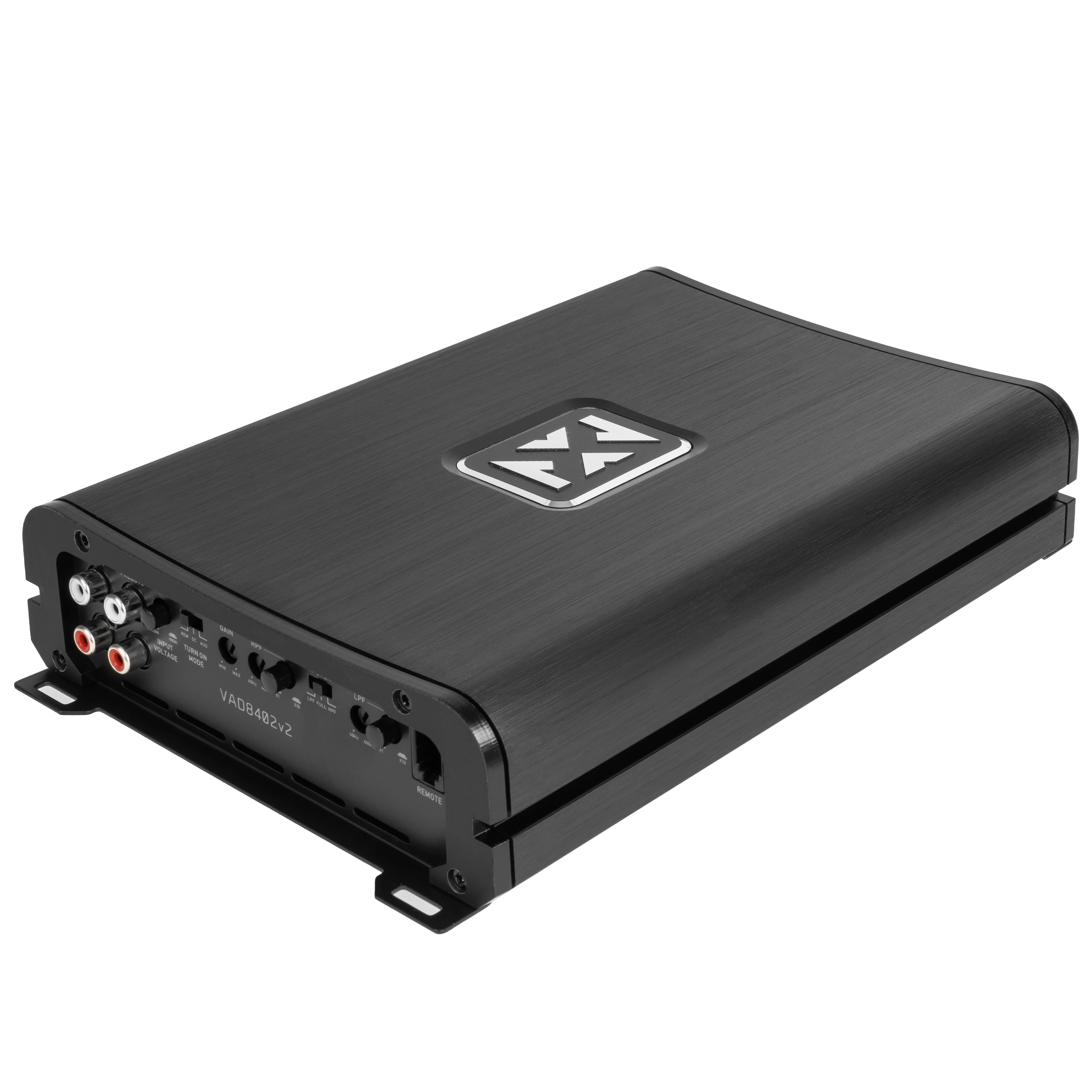

• Marine Certified V Series Class D 2 ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 300 watts x 2 channel
• 2 ohm: 420 watts x 2 channel
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS power output: 840 watts
• LED Indicators: Power and Protect lights
• Conformal Coated Marine Grade Circuit Board

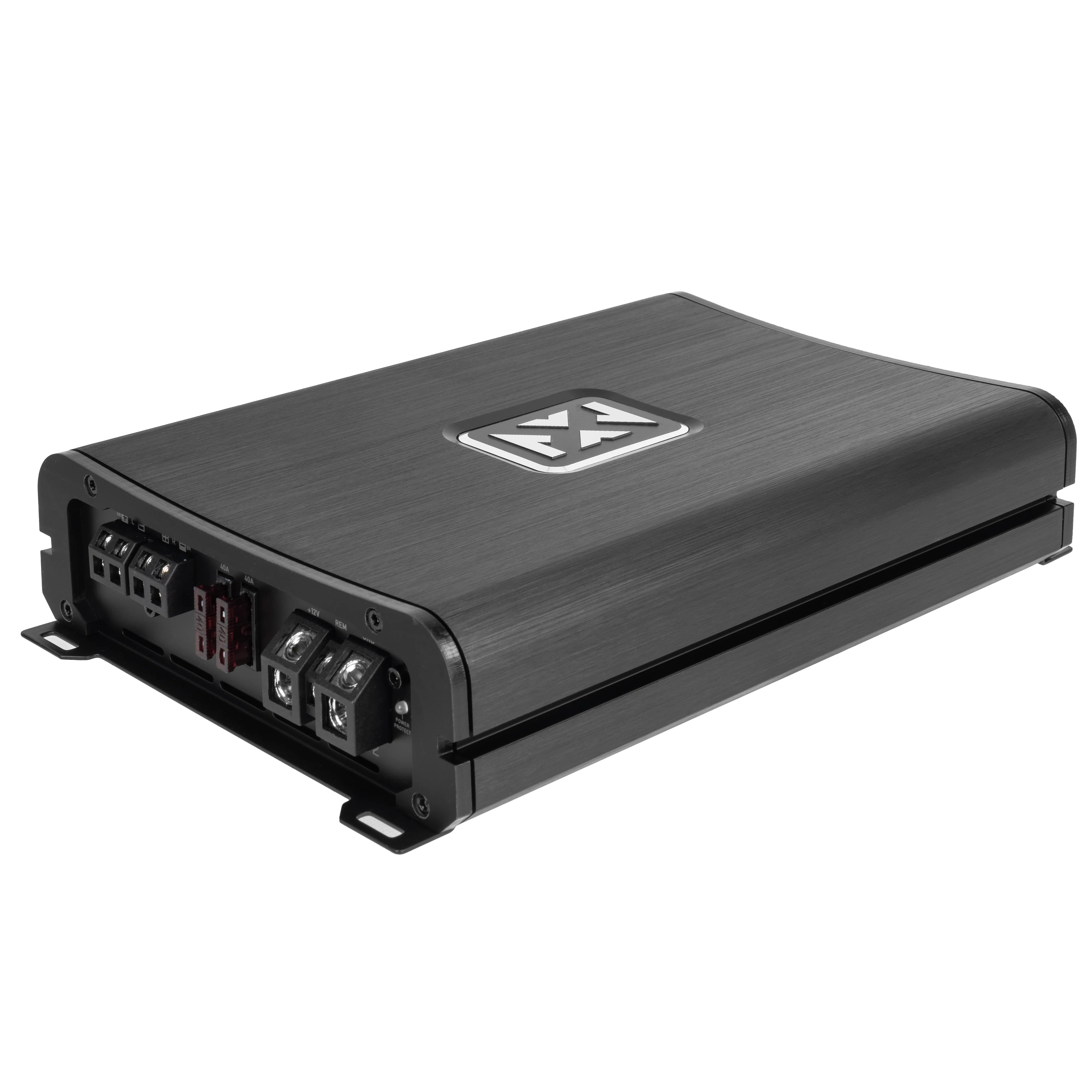

• Platinum-plated Power and Speaker terminals

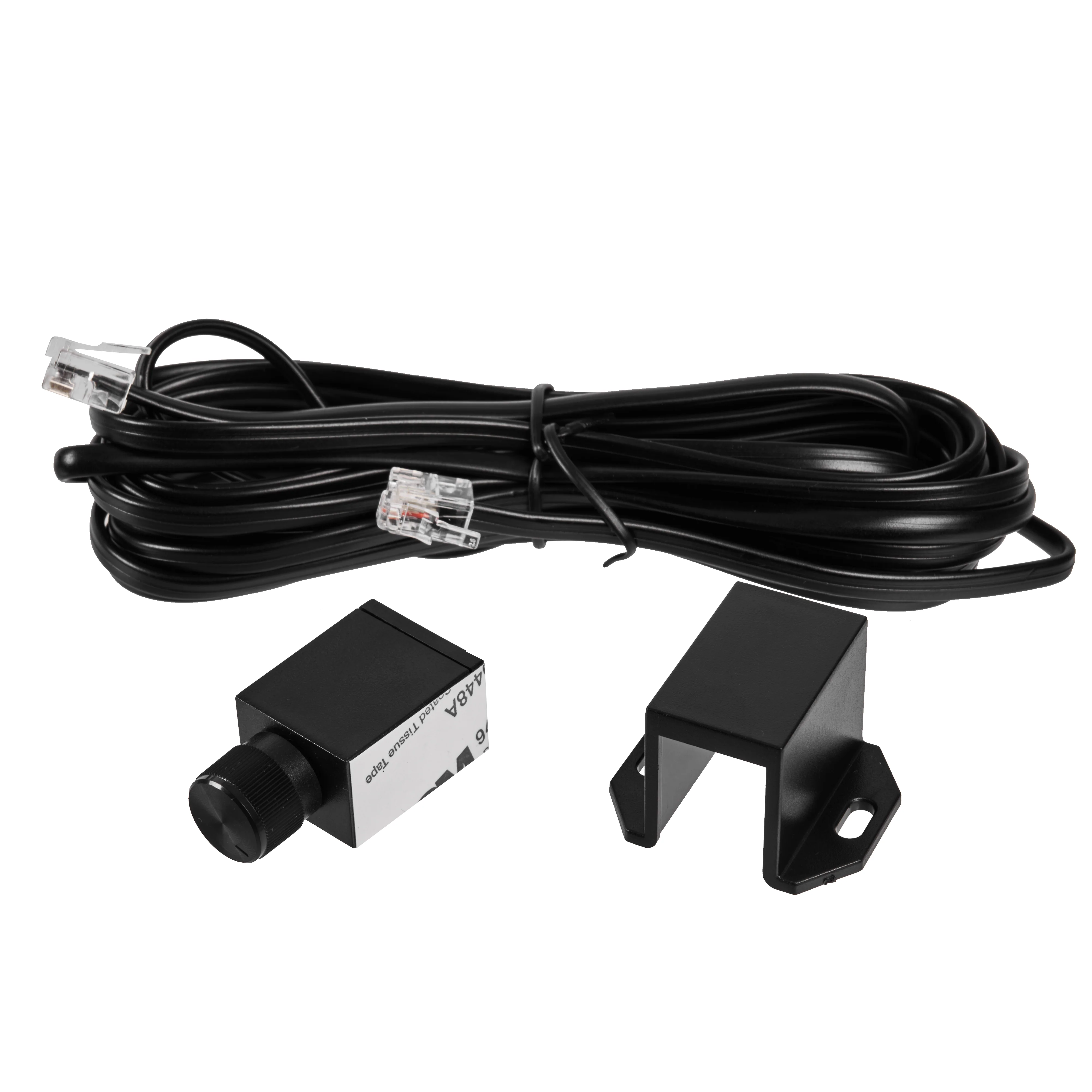

• Includes a Wired Bass Level Remote Control
• Balanced differential inputs eliminate noise picked up by signal cables
• Speaker-Level (High-Level) Inputs
• RCA Pre-Amp Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• Input sensitivity: 0.2 - 18 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: >85 dB
• x1 and x10 Crossover Multiplier
• Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
• Variable low-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
• Fuse Rating: 80A
• 4 AWG gauge amplifier wiring kit is recommended for installation

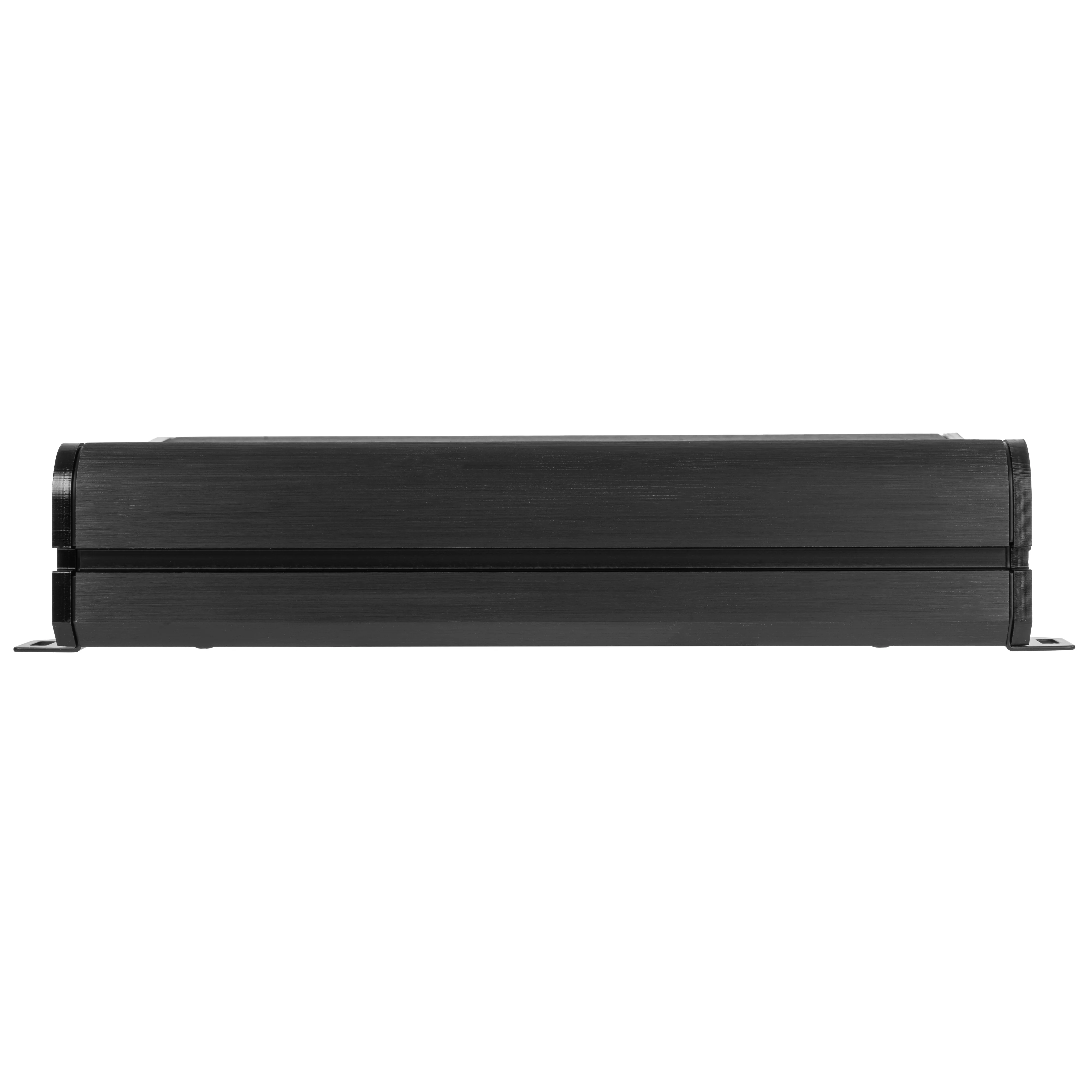

• Dimensions: 10.32" L x 6.81" W x 2.05" H
• 1-year Warranty from the Original Purchase Date
• MFR #: VAD8402v2

 VADv2 owner’s manual
