Product Details:

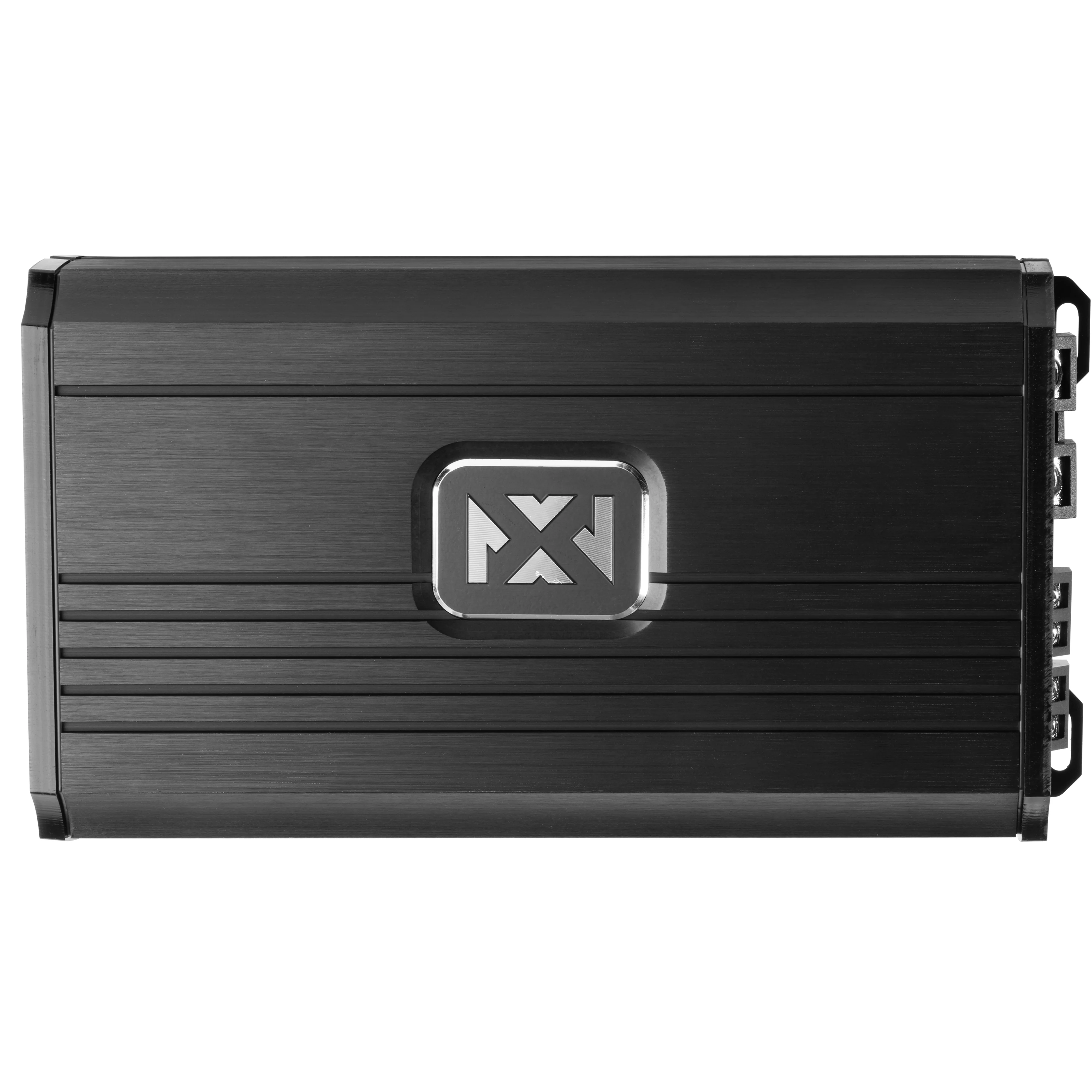

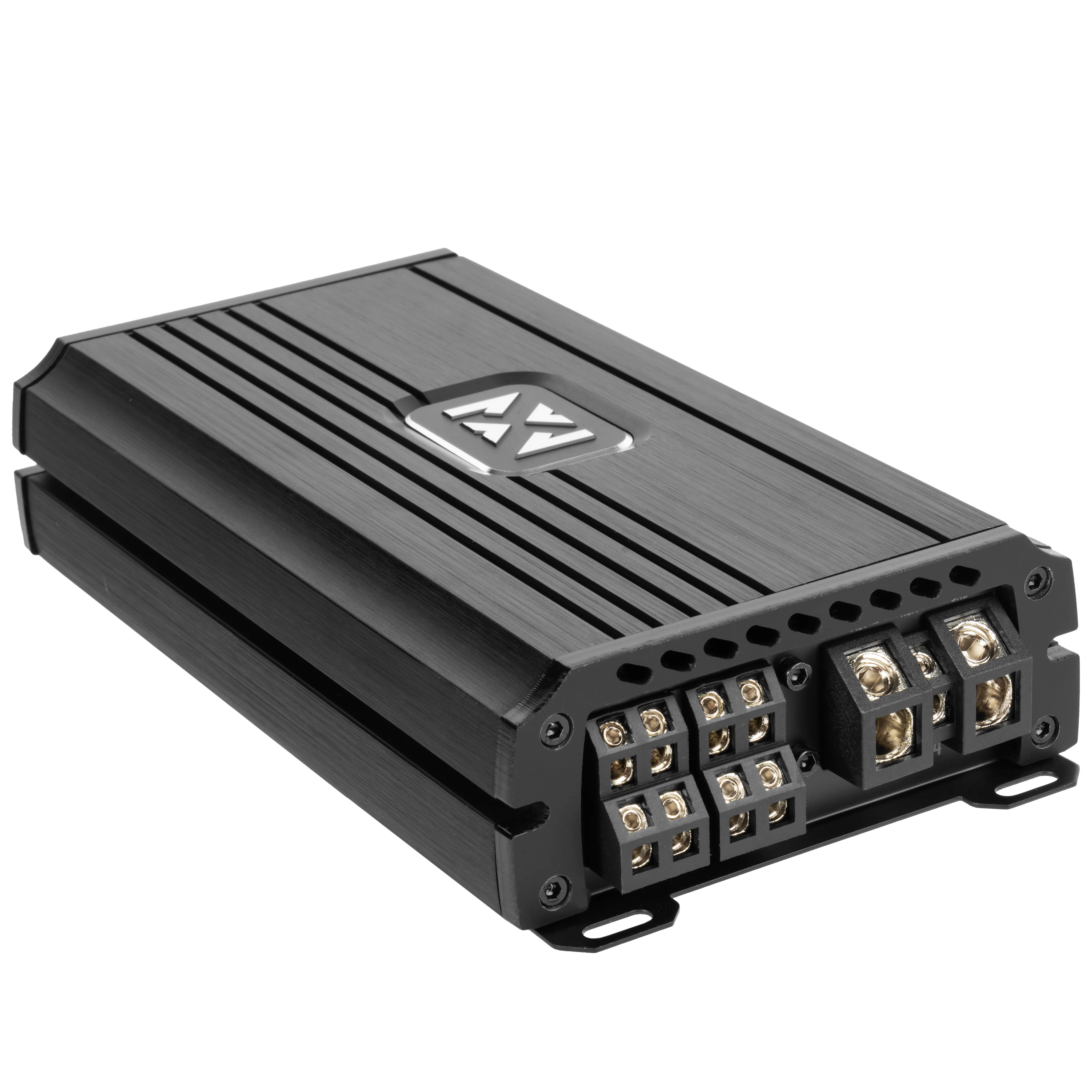

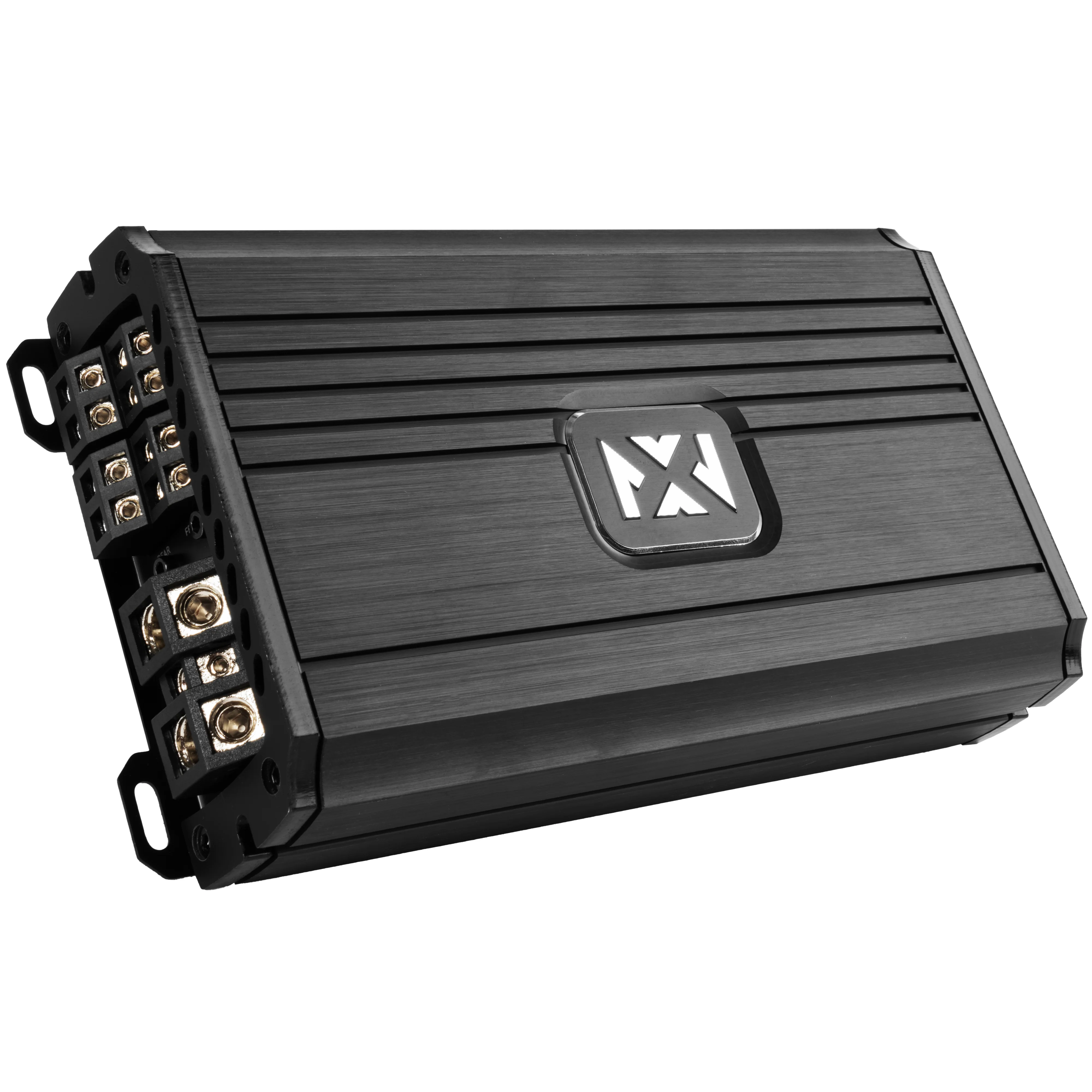

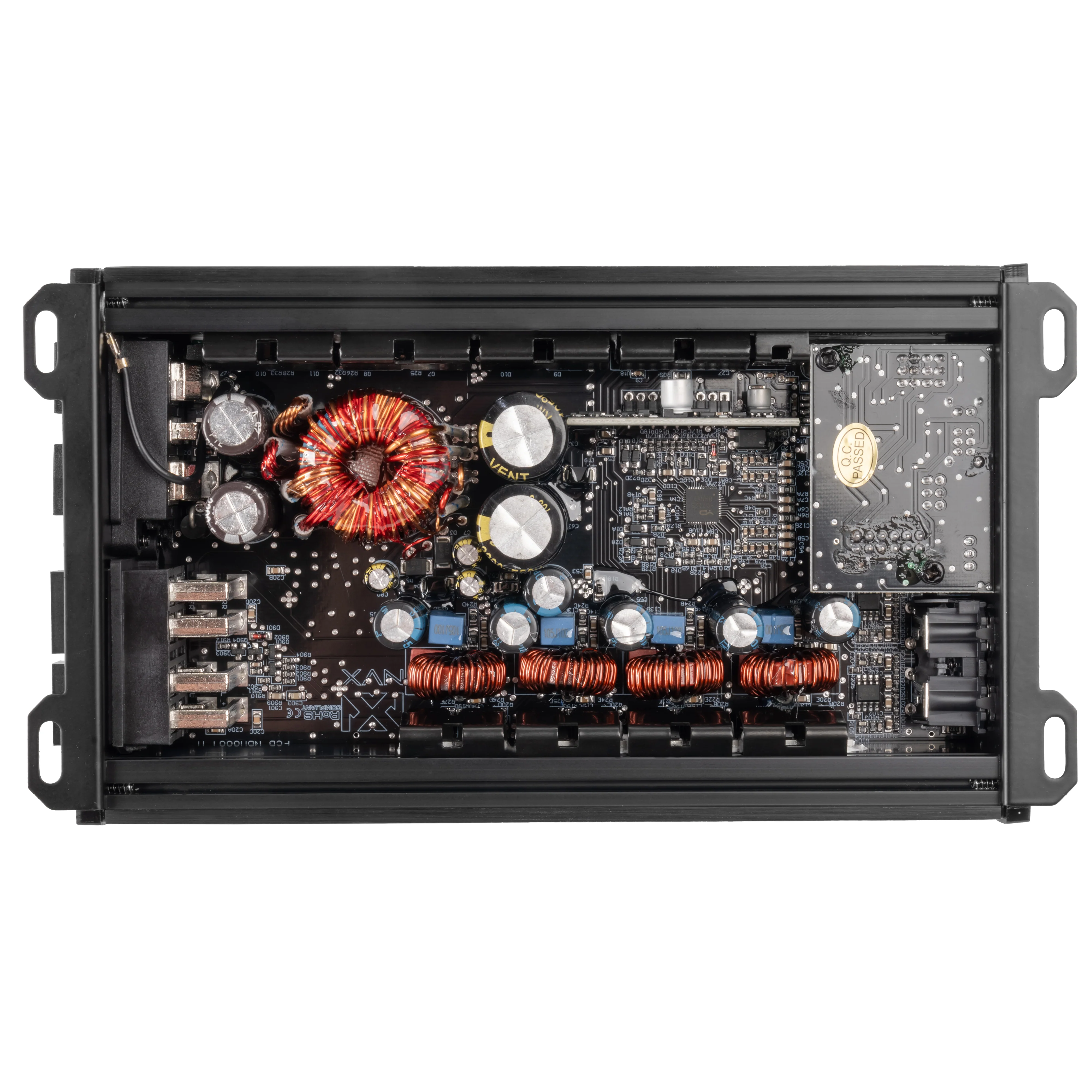

• N-Series Class D 2 ohms Stable 4-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 100 watts x 4 channel
  • 2 ohms: 160 watts x 4 channel
  • Bridged: 320 watts x 2 channel @ 4 ohms
• Total power output: 600 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• 4-way protection circuitry (thermal, overload, speaker short and DC offset)
• Balanced differential inputs eliminate noise picked up by signal cables

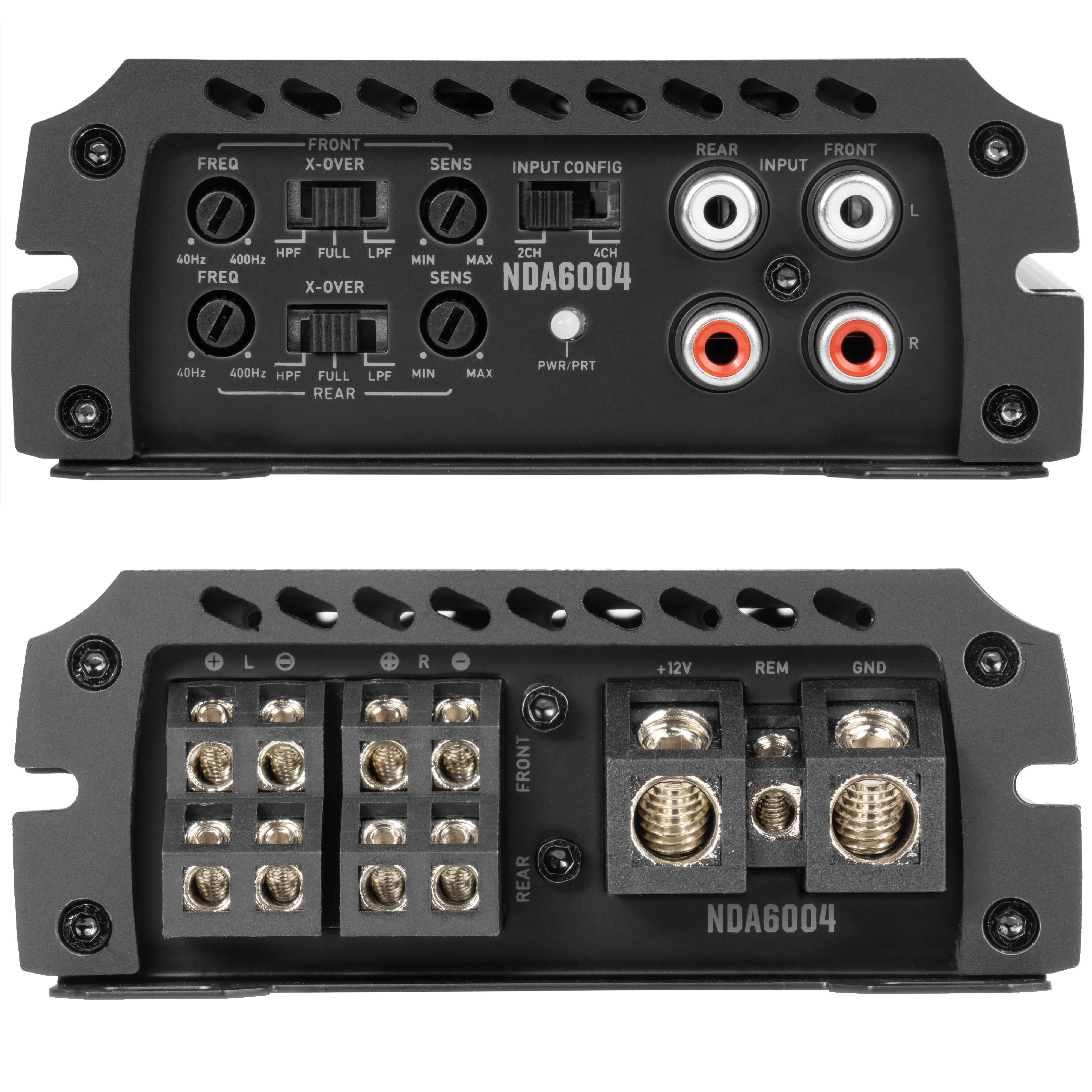

• Selectable crossover modes: FULL / HPF / LPF
• Input sensitivity:
  • Low level and High level: 0.2 - 10 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: 96 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• 4 AWG gauge amplifier wiring kit is recommended for installation

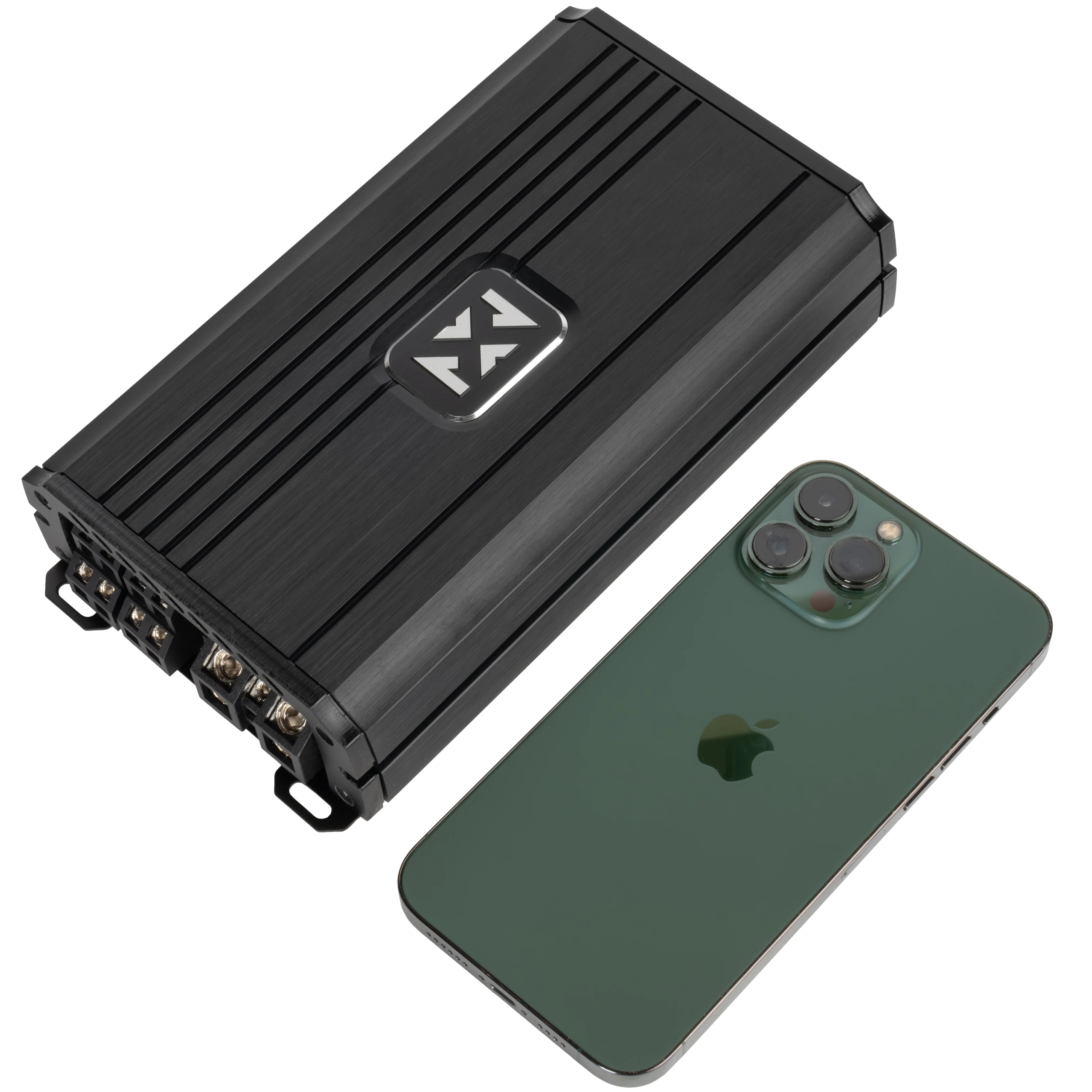

• Dimensions: 8.18" L x 4.42" W x 1.73" H
• 1-year Warranty from the Original Purchase Date
• MFR #: NDA6004

 NDA owner’s manual
