Product Details:

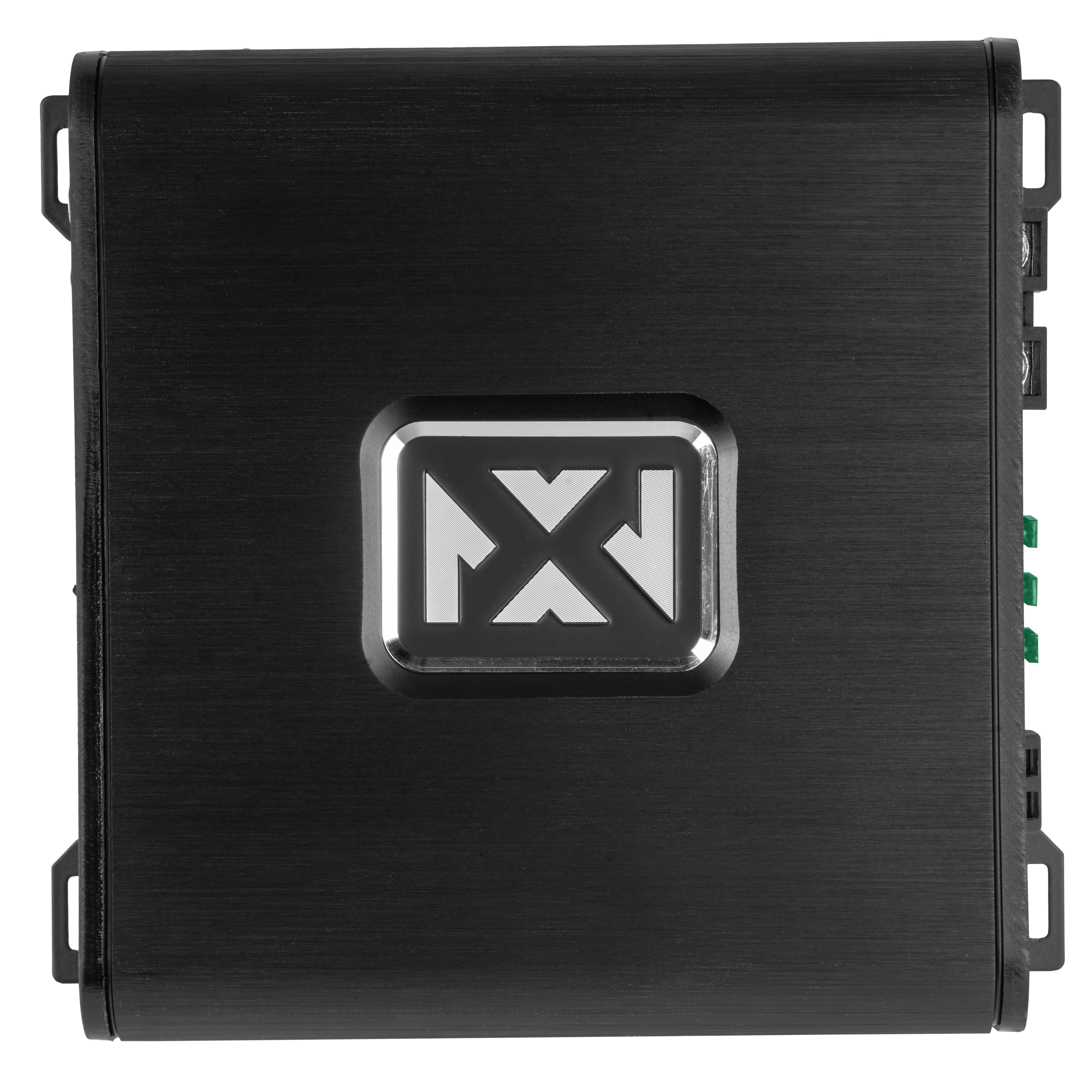

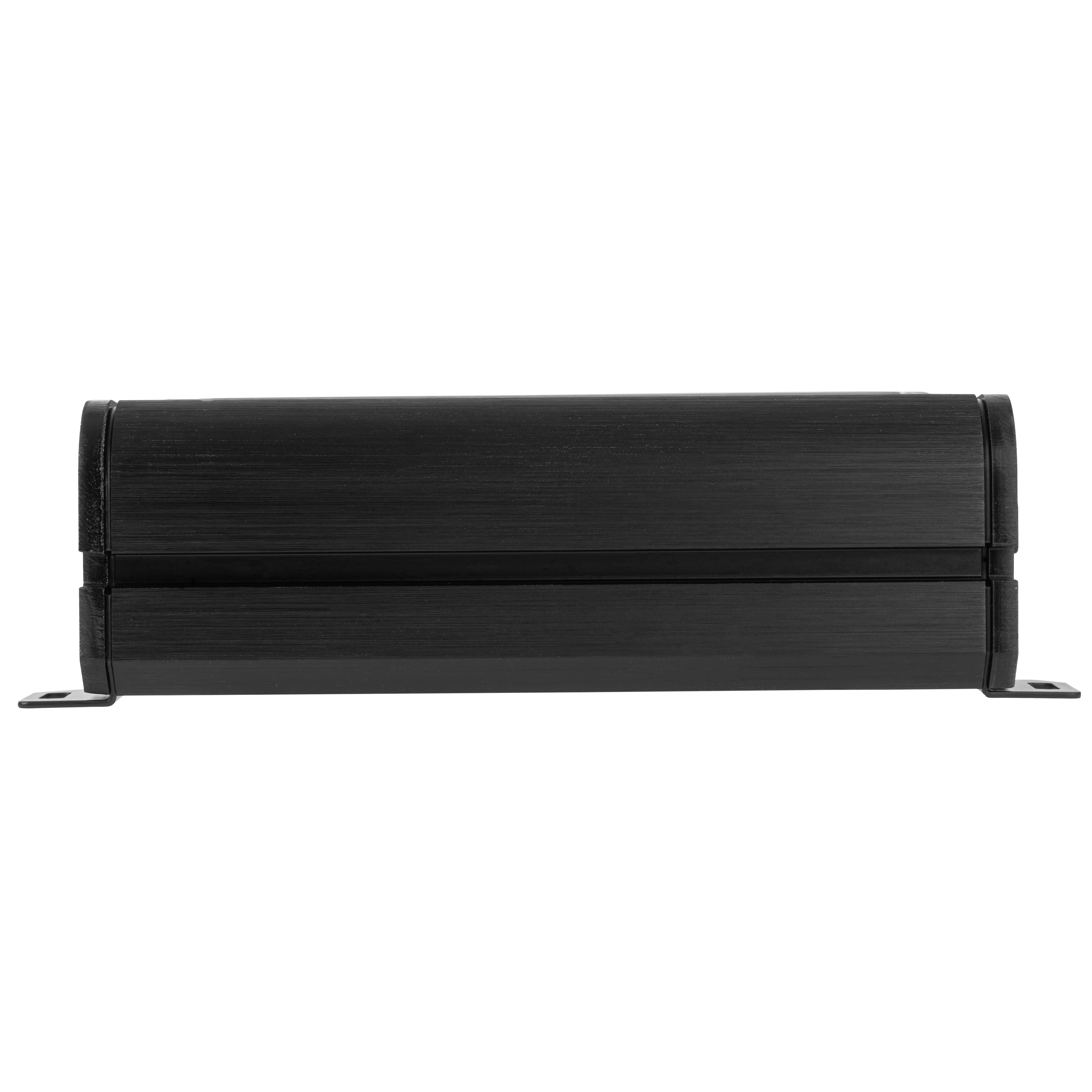

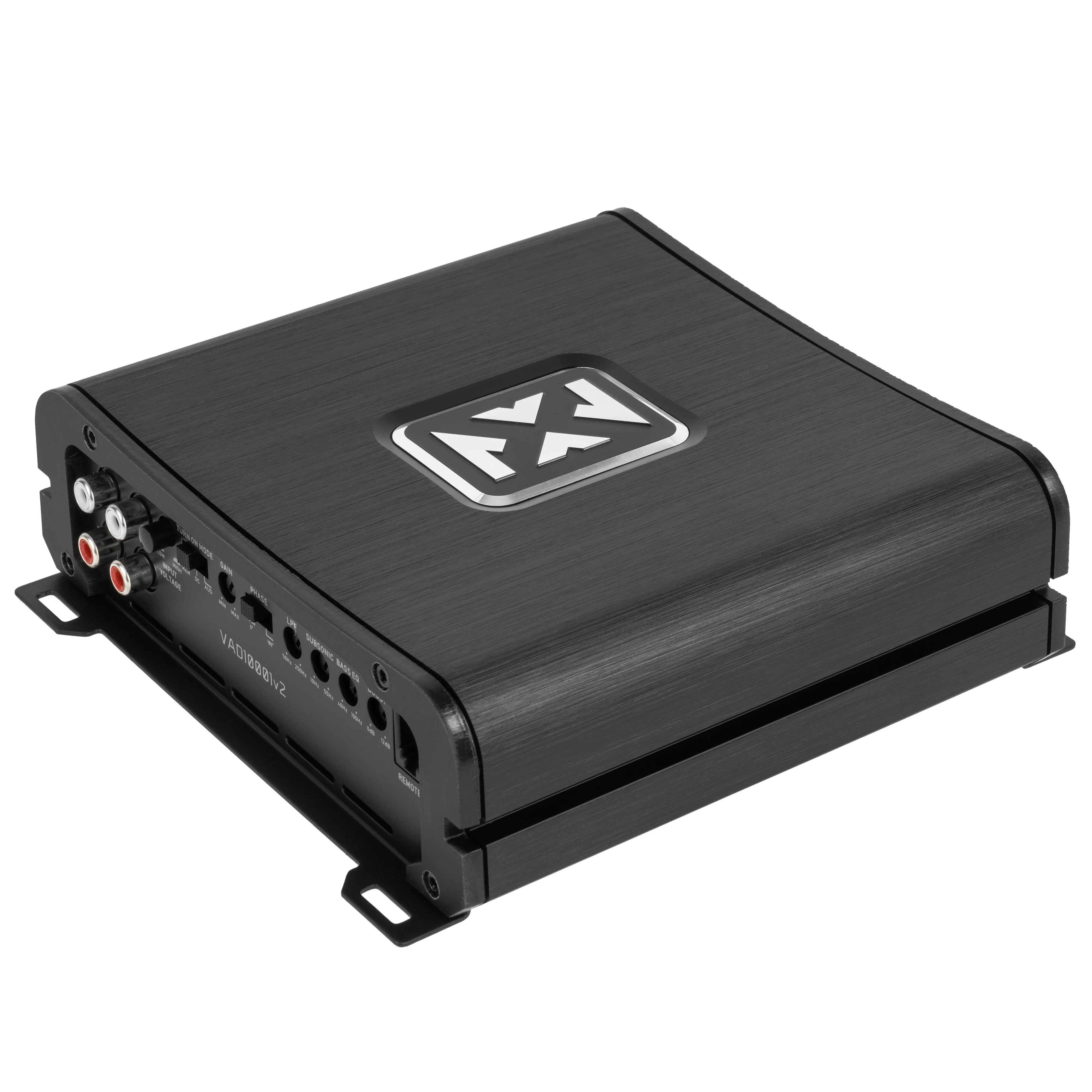

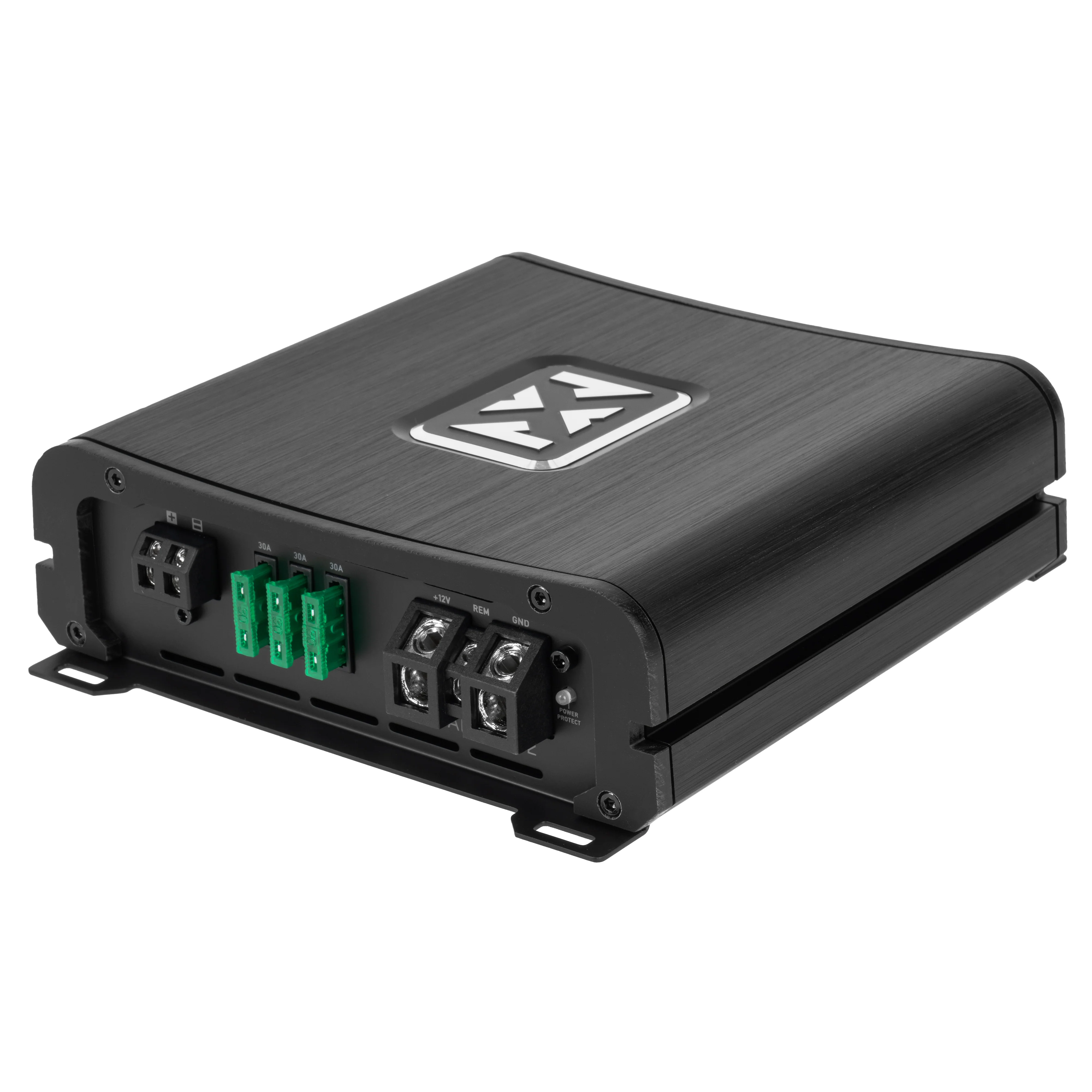

• Marine Certified V Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 420 watts x 1 channel
• 2 ohm: 760 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• Total RMS power output: 1000 watts
• Conformal Coated Marine Grade Circuit Board
• LED Indicators: Power and Protect lights
• Platinum-plated Power and Speaker terminals

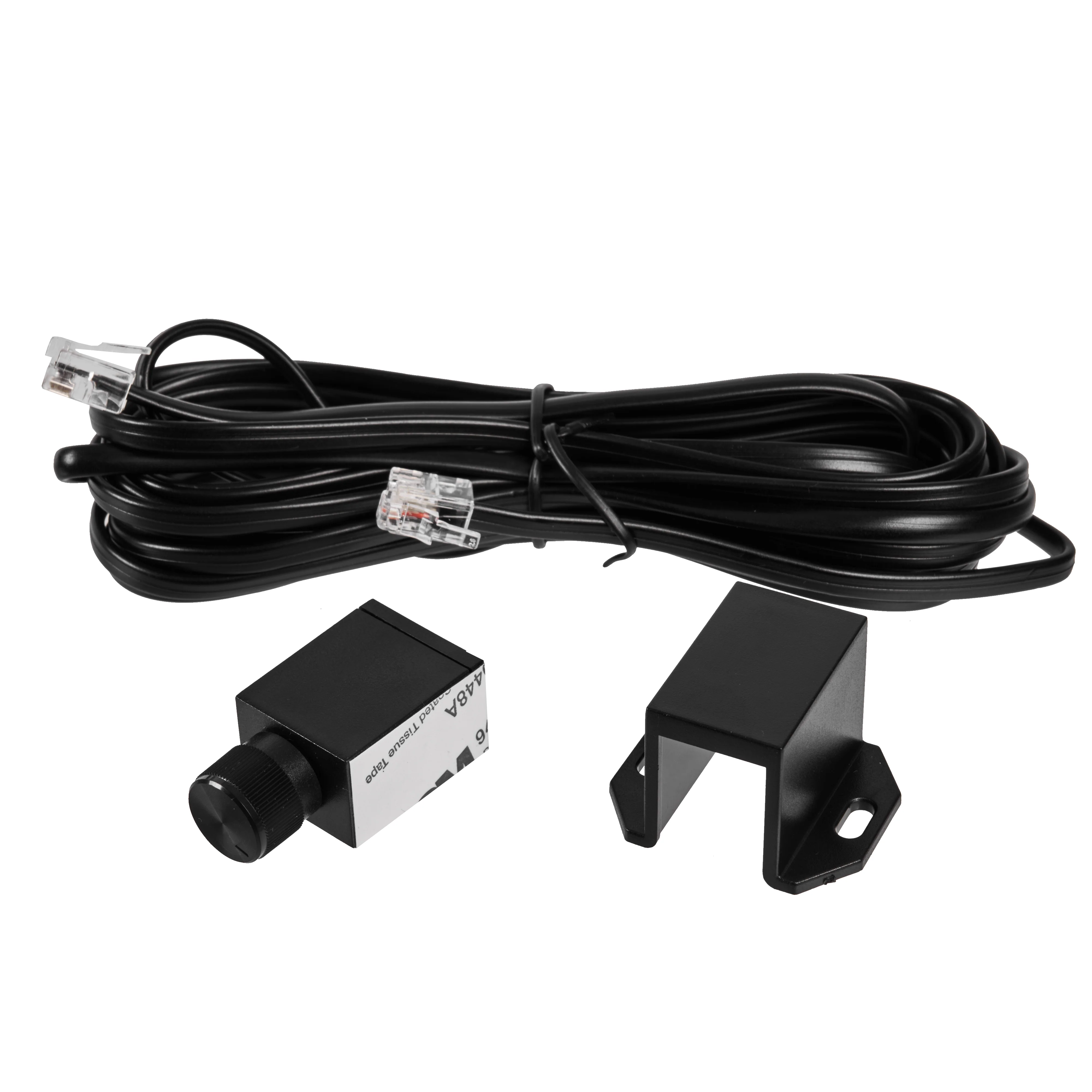

• Includes a Wired Bass Level Remote Control
• Balanced differential inputs eliminate noise picked up by signal cables
• Speaker-Level (High-Level) Inputs
• RCA Pre-Amp Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• Input sensitivity: 0.2 - 18 volts
• Frequency Response: 20 - 250 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: >85 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Subsonic filter: 10 - 55 Hz, 24 dB/octave
• Variable Bass Boost: 0 - 12 dB @ 45 Hz
• Phase Control: 0° to 180° Switch
• Fuse Rating: 90A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.16" L x 6.81" W x 2.05" H
• 1-year Warranty from the Original Purchase Date
• MFR #: VAD10001v2

 VADv2 owner’s manual
