Product Details:

• 15" Dual 4-ohm Y-Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• 15 mm Xmax
• Enhanced Pressed Paper Cone
• Custom High-Roll Foam Surround with Black Nylon Stitching

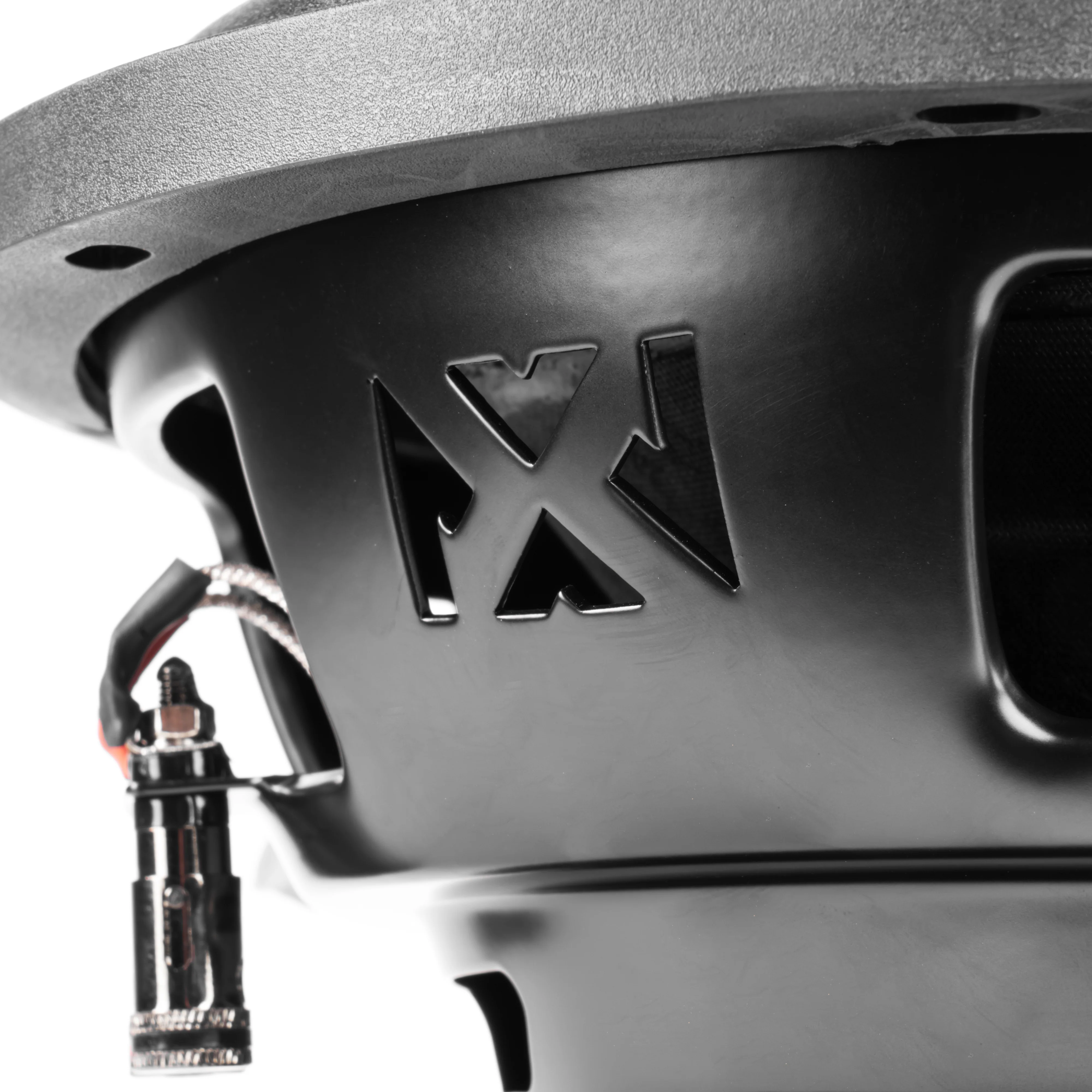

• Stamped Steel Vented Basket with NVX Punched Logo
• 3.0" High Temperature Copper Voice coil with Aluminum Former

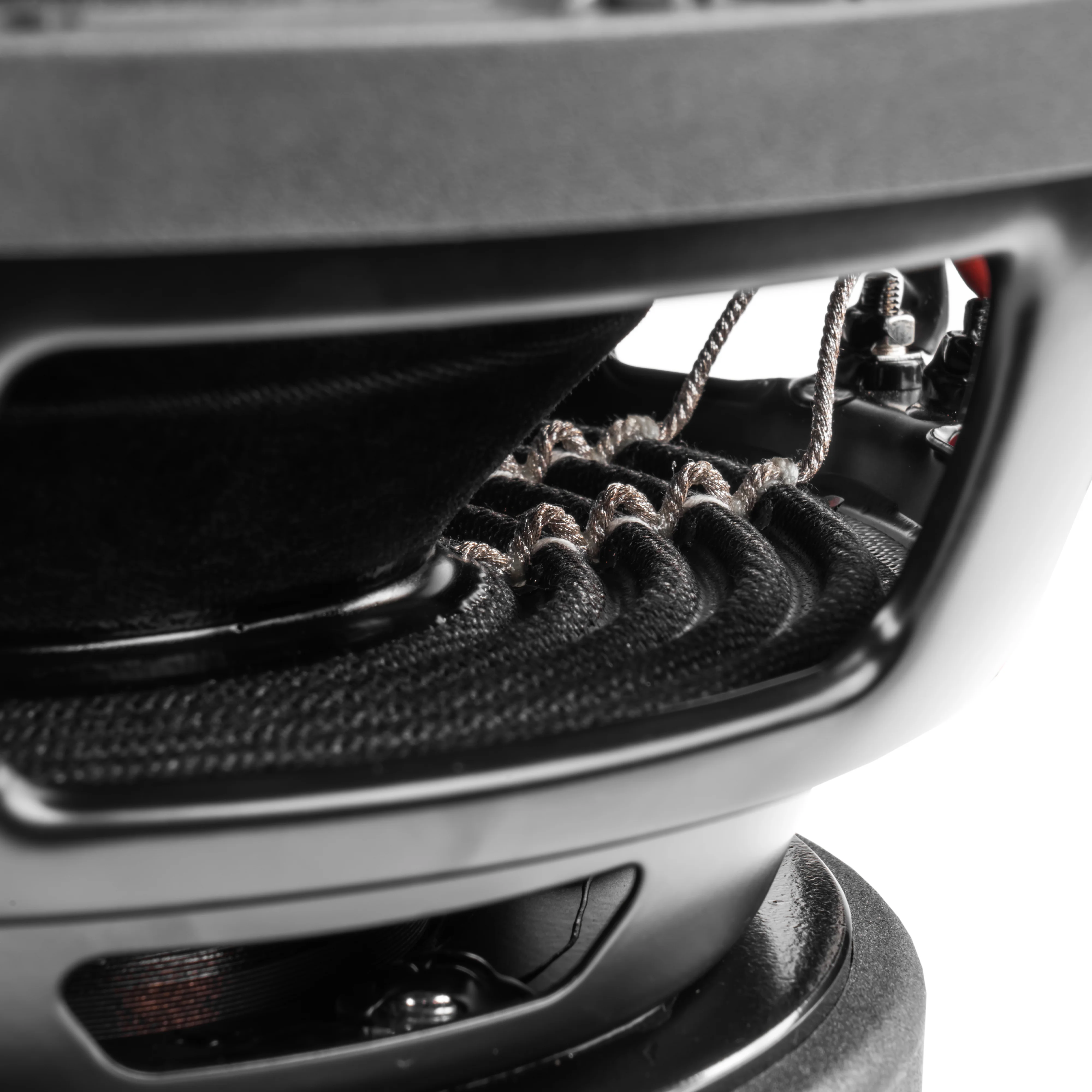

• Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 27.7 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 2.0 cubic feet
• Recommended ported box volume: 3.5 cubic feet
• Top-mount depth: 7.47"
• Cutout diameter: 13.97"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date
