Product Details:

• 12" Dual 2-ohm Y-Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• 15 mm Xmax
• Enhanced Pressed Paper Cone

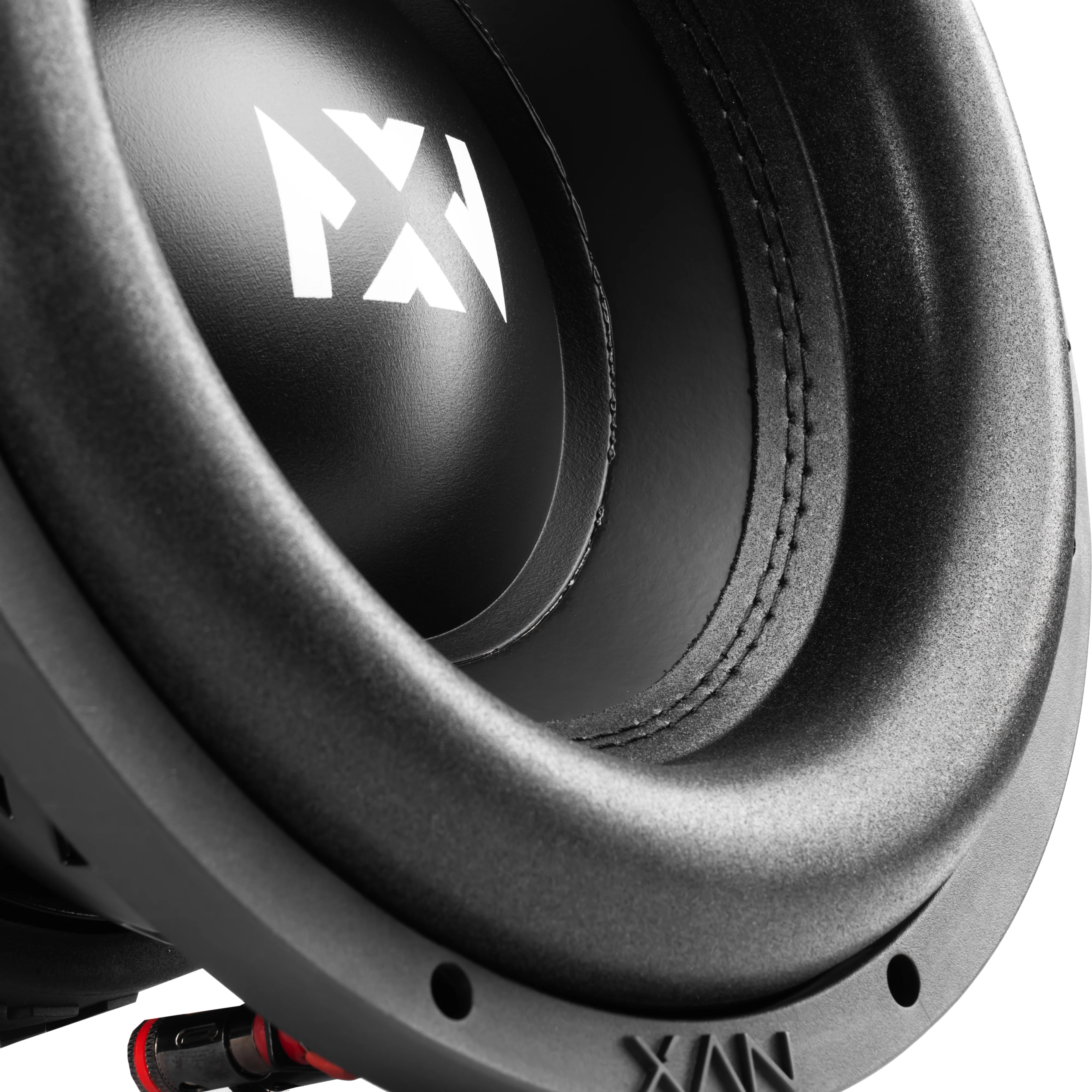

• Custom High-Roll Foam Surround with Black Nylon Stitching

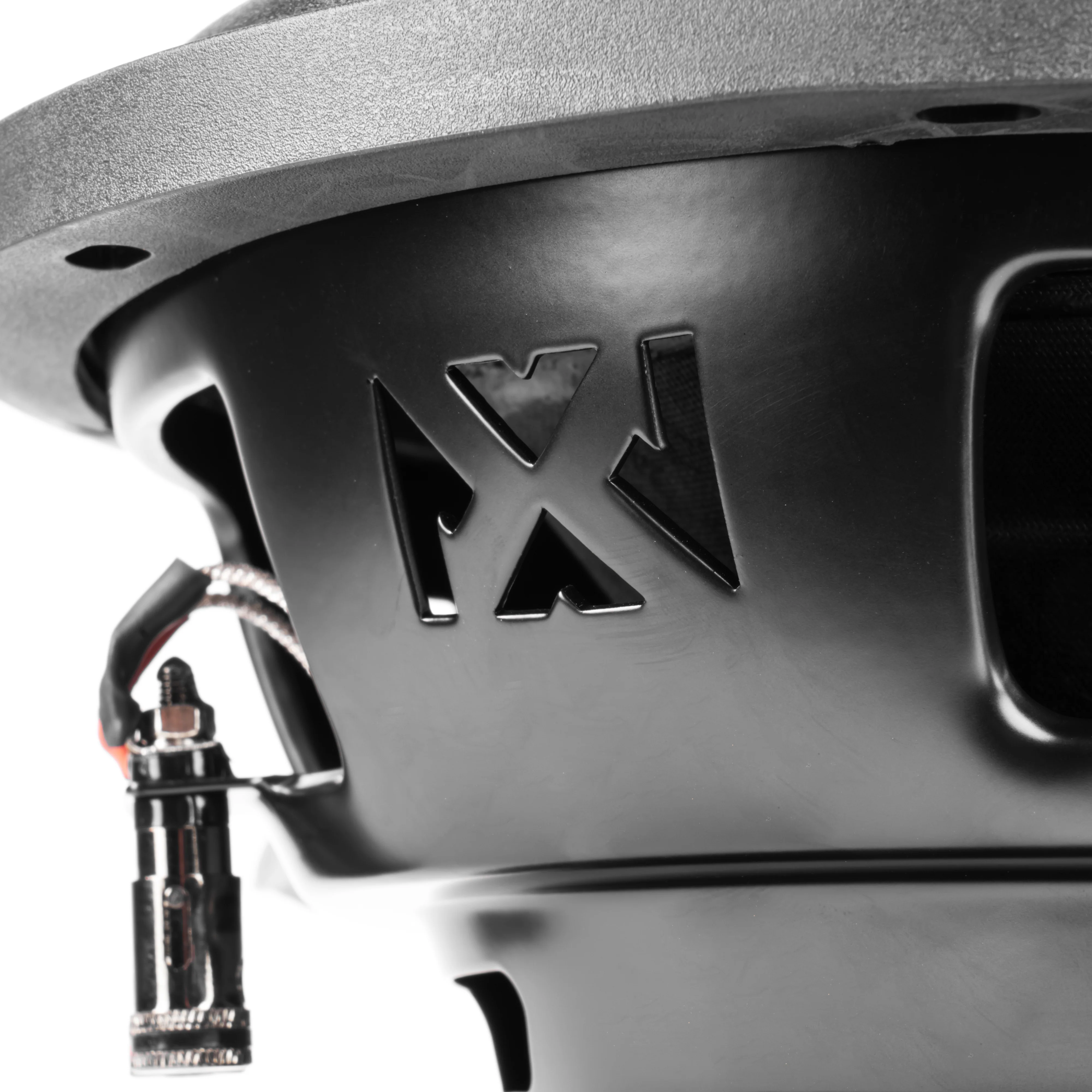

• Stamped Steel Vented Basket with NVX Punched Logo
• 3.0" High Temperature Copper Voice coil with Aluminum Former

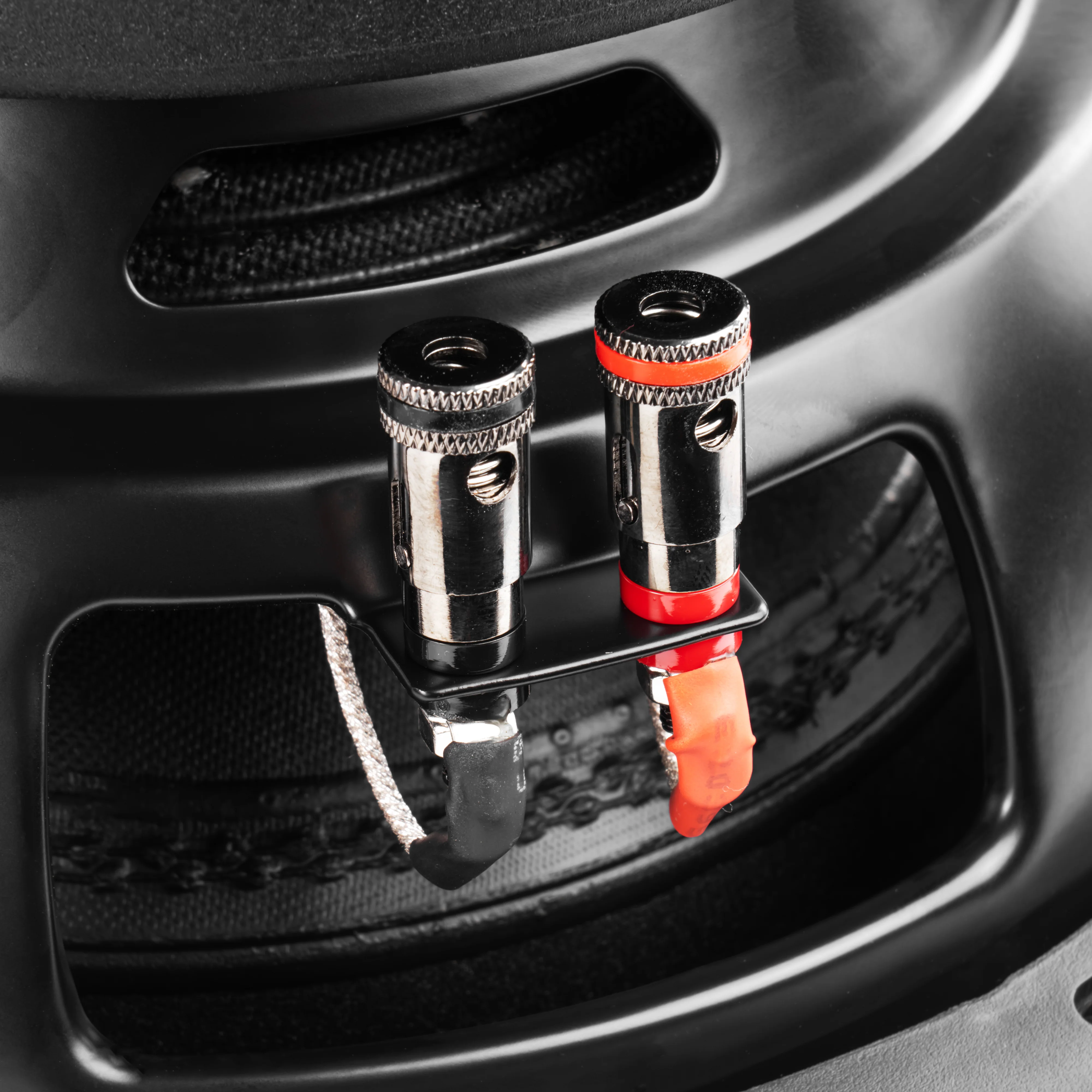

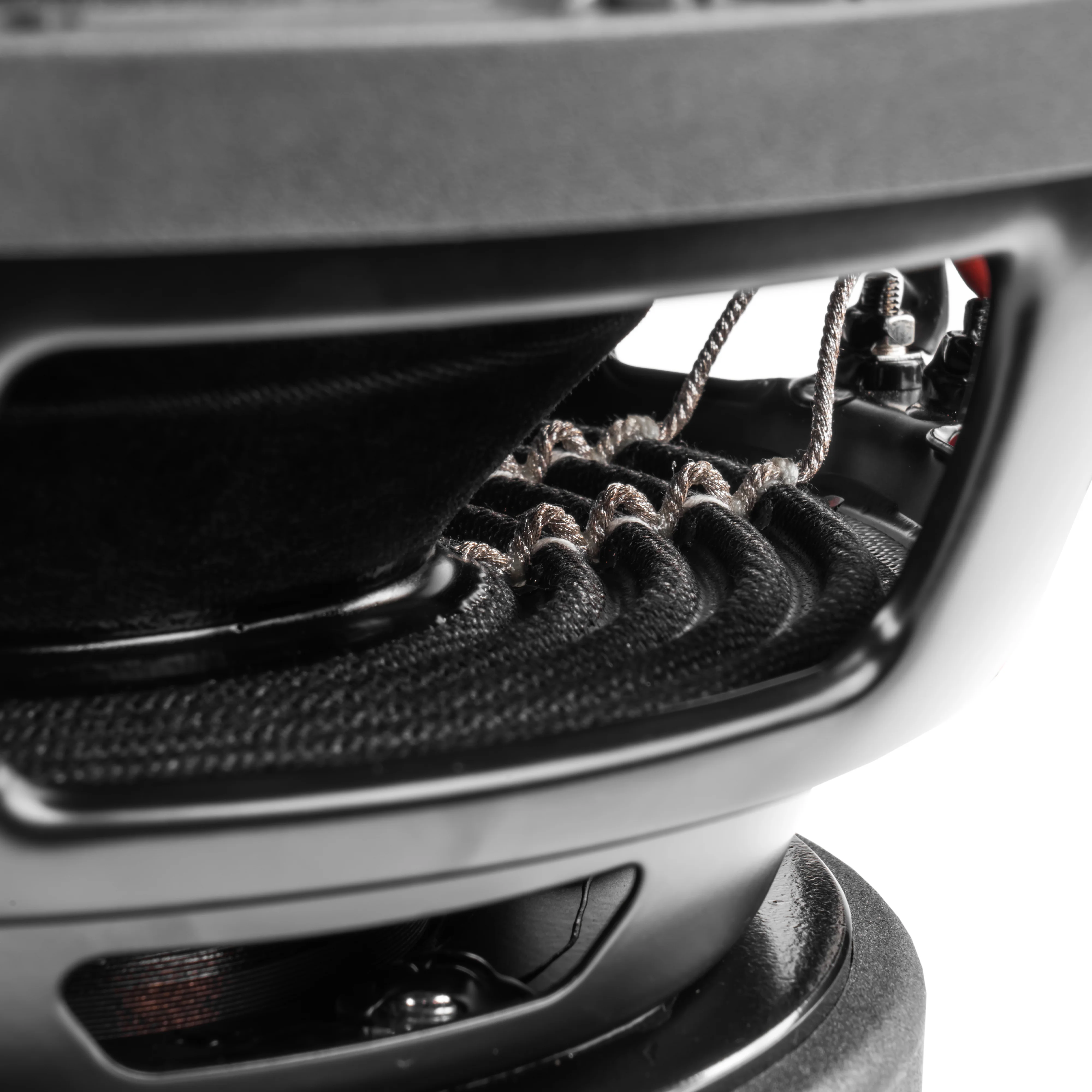

• Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent

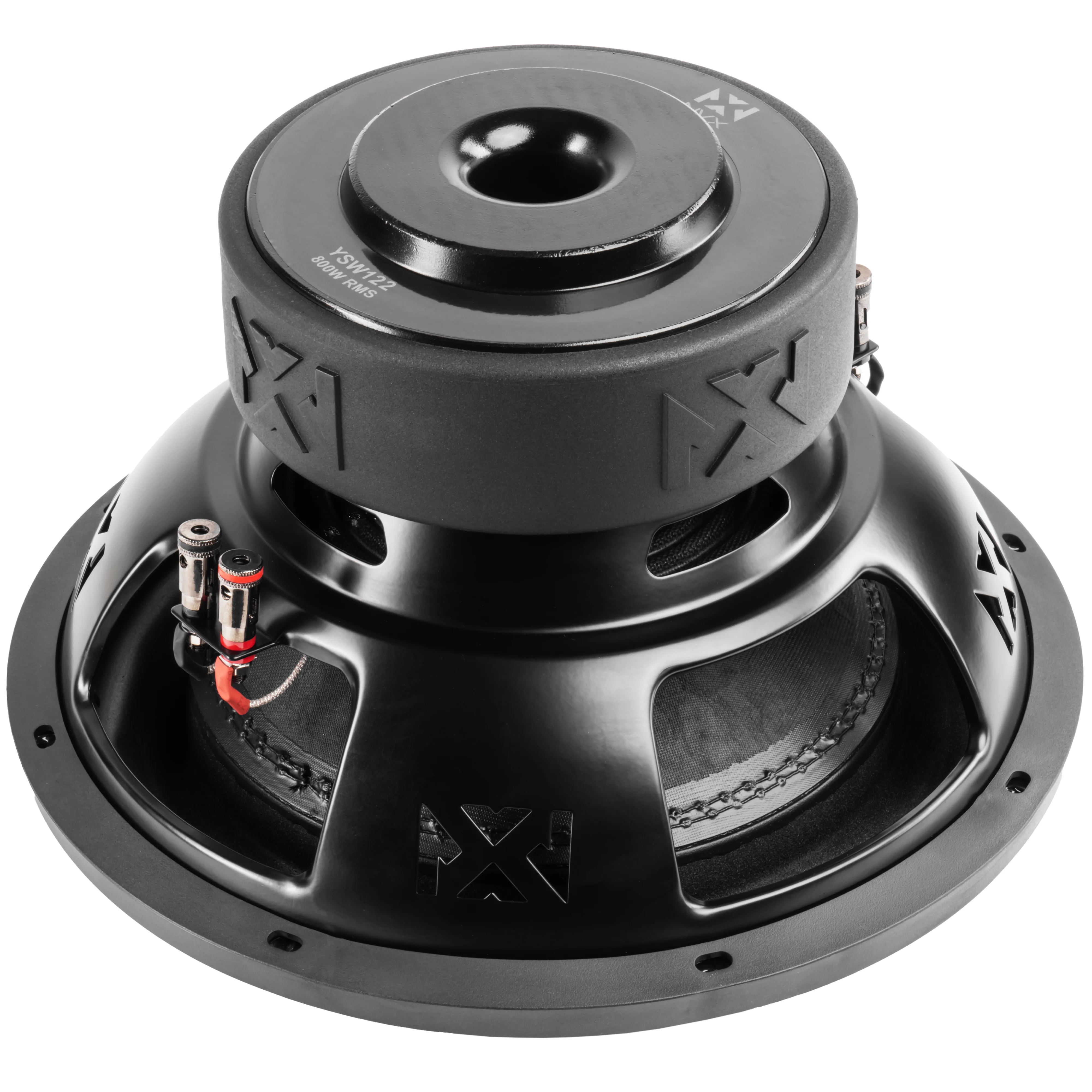

• 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 27.3 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: .75 cubic feet
• Recommended ported box volume: 1.85 cubic feet
• Top-mount depth: 6.5"
• Cutout diameter: 11.14"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date
