Product Details:

• 6-1/2" X Series 2-way Component System Car Speakers
• Power Handling:
  • Peak: 600 watts per set / 300 watts each side
  • RMS: 300 watts per set / 150 watts each side

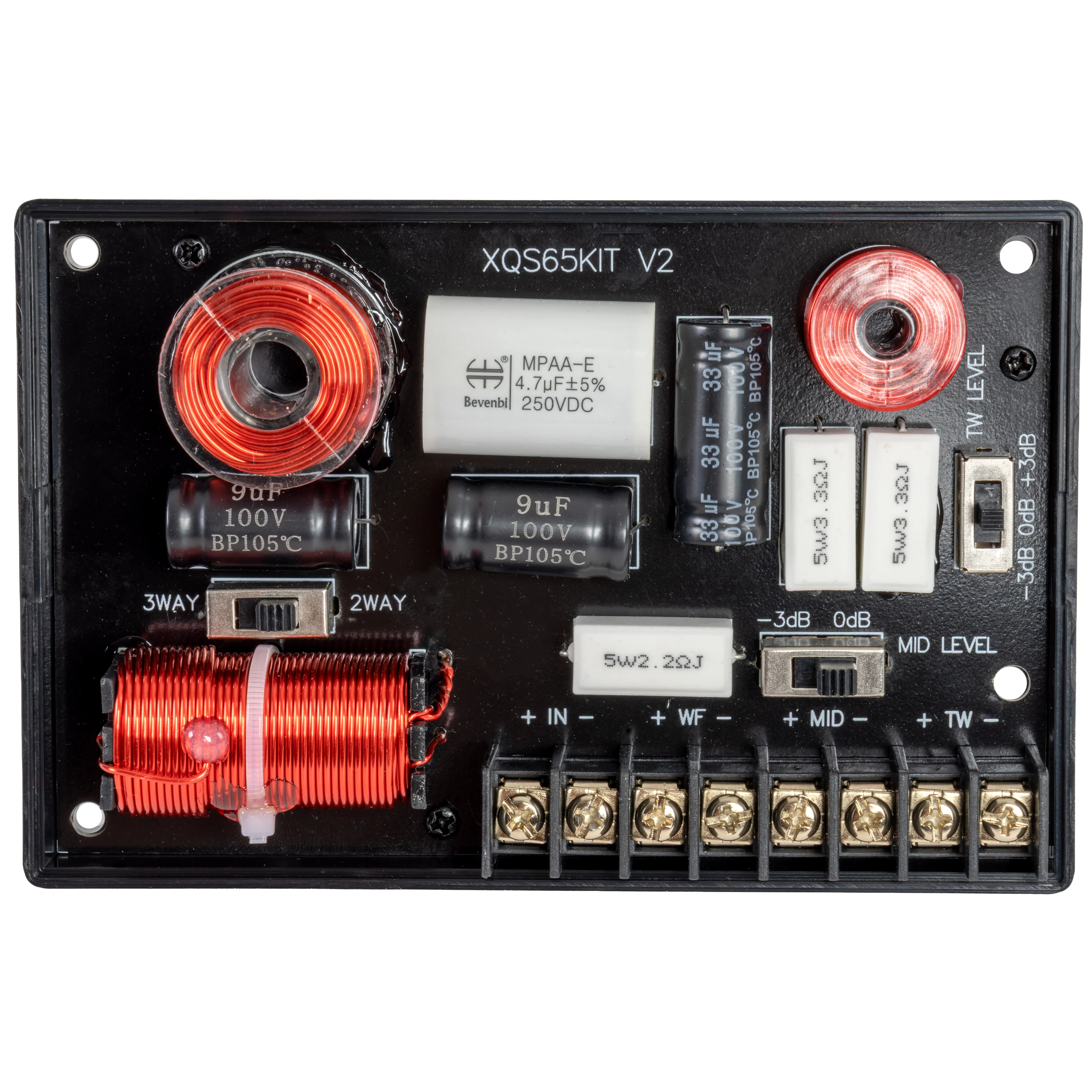

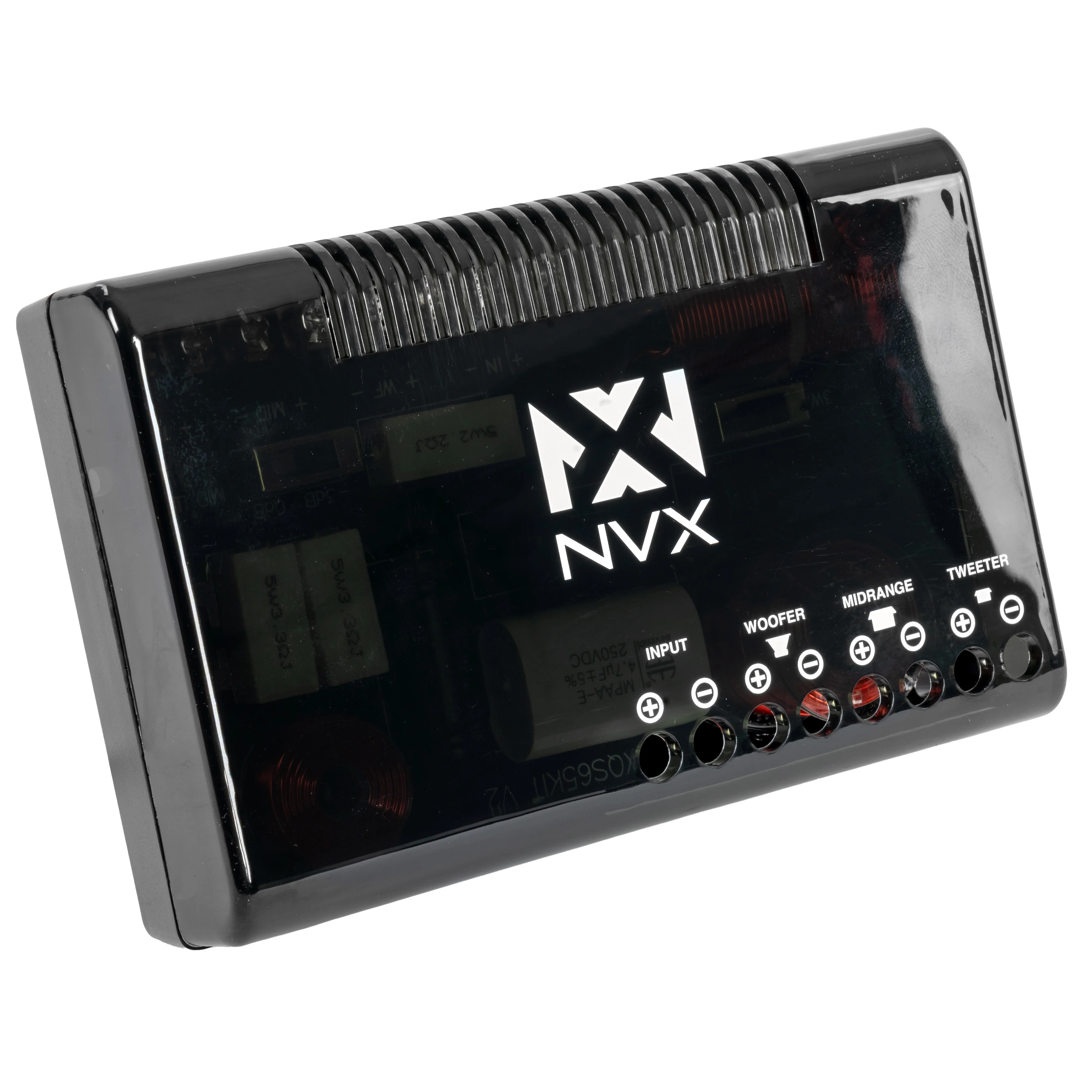

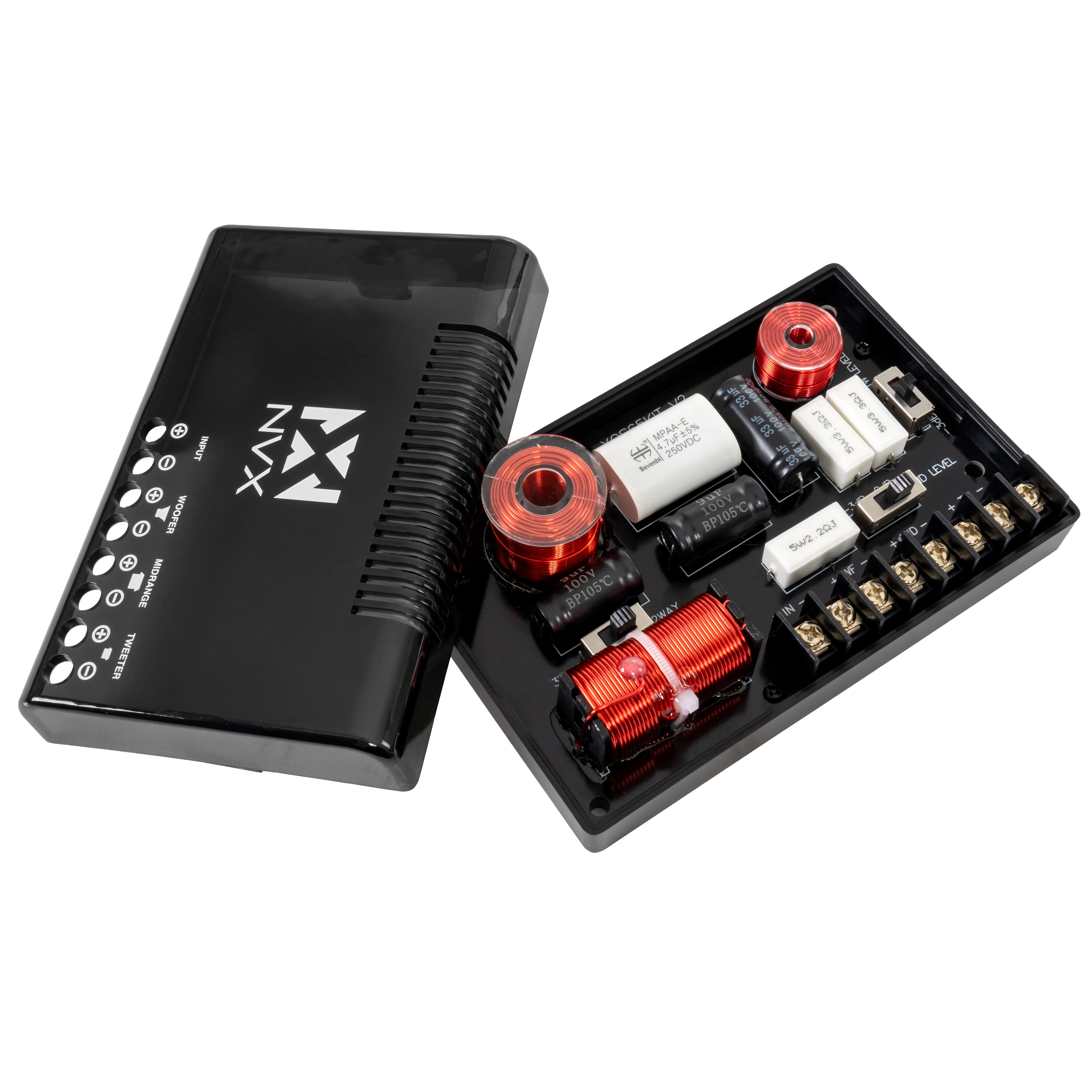

• Switchable 2-way and 3-way external crossover networks with adjustable tweeter and midrange attenuation
• Upgrade to a 3-way system by incorporating XQS3v2 3.5" or XQS2 2.5" midrange speakers (Sold separately)

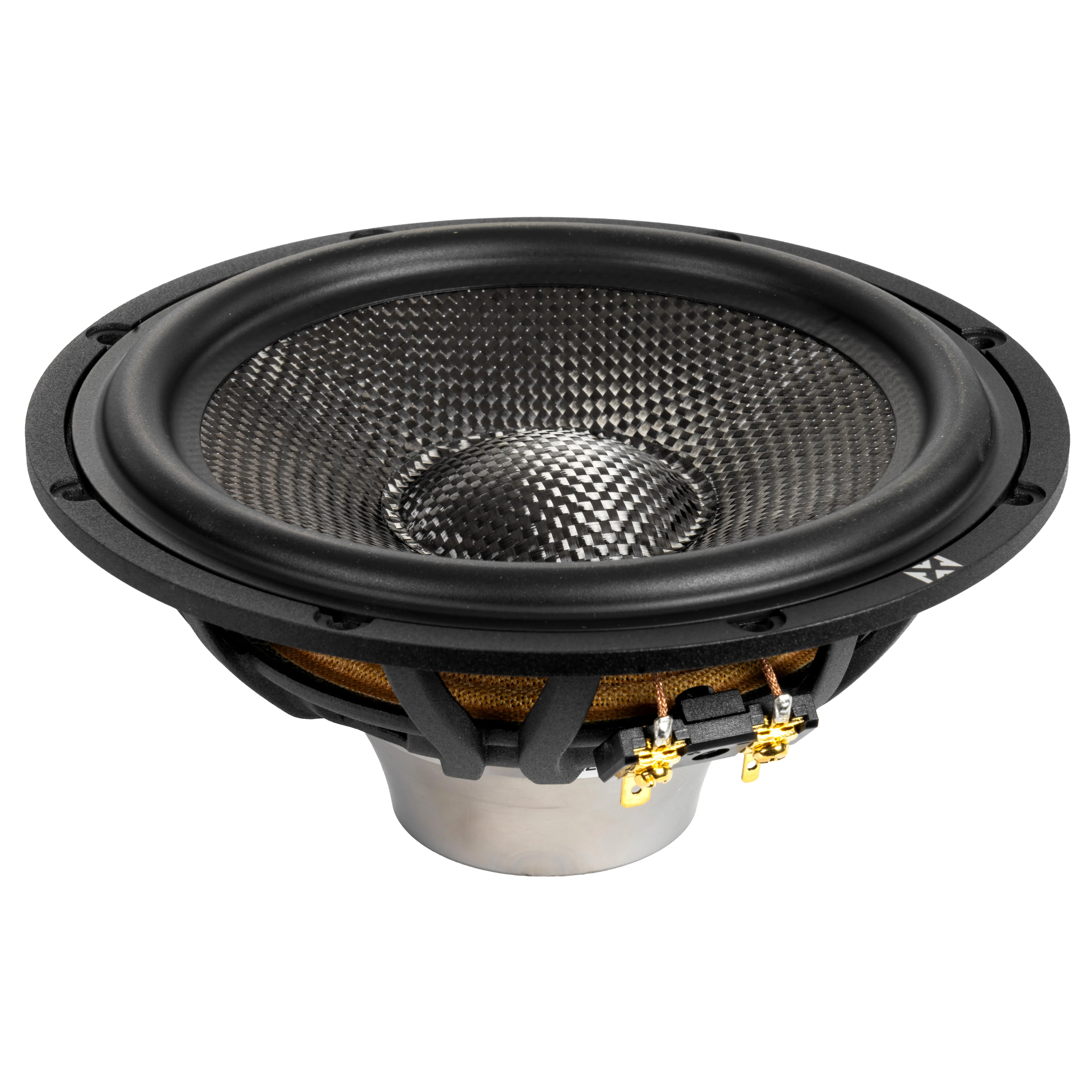

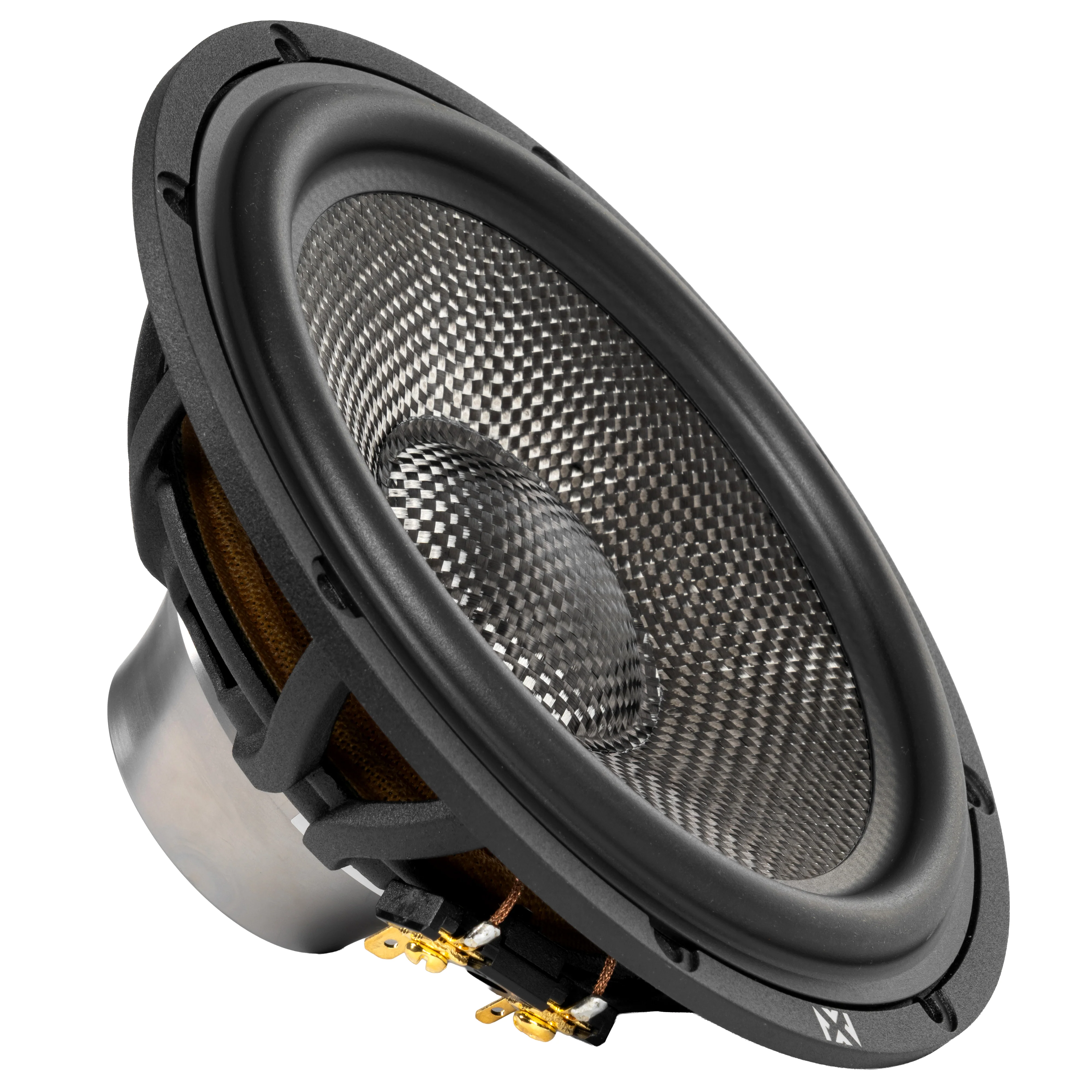

• Carbon Fiber cone material
• Rubber speaker surround

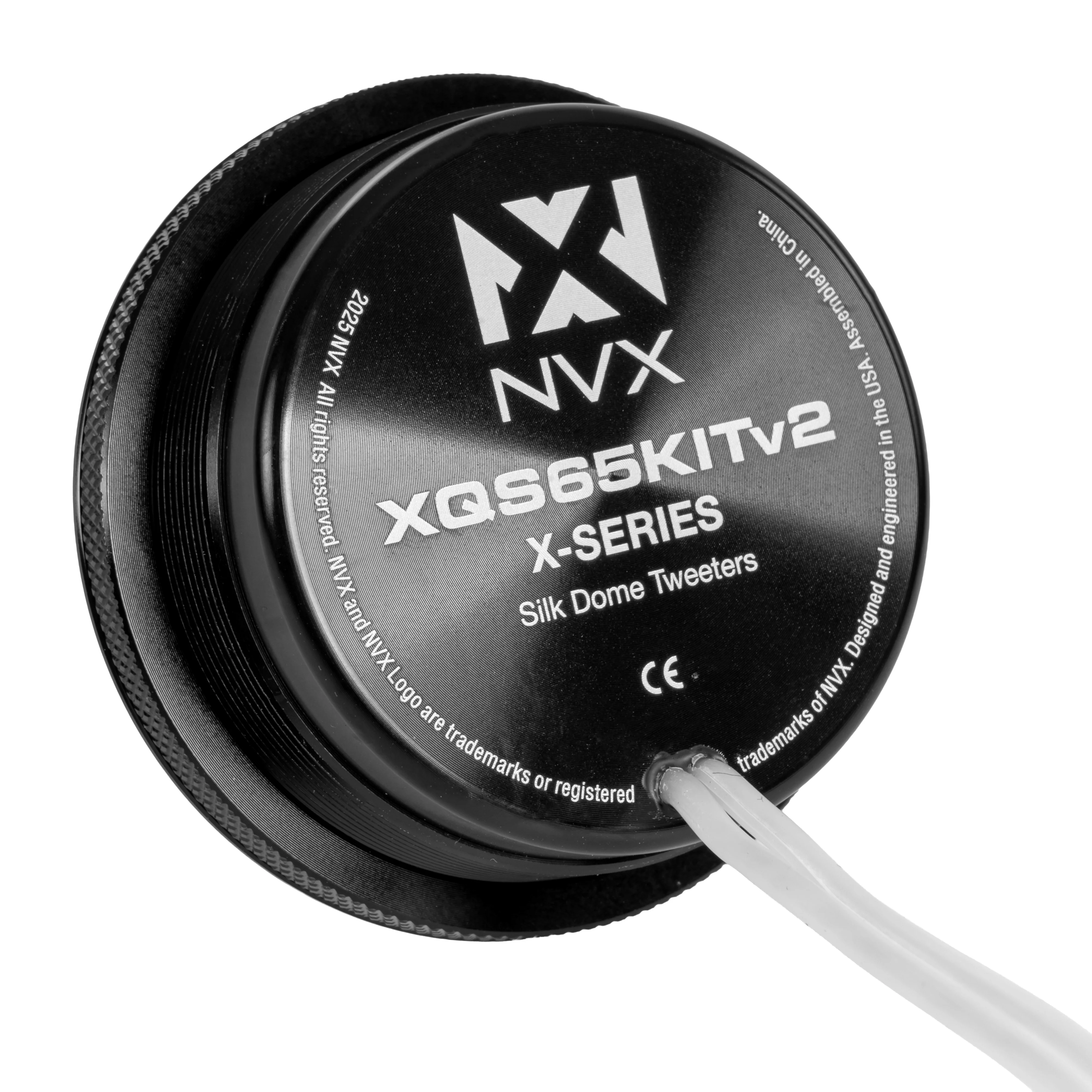

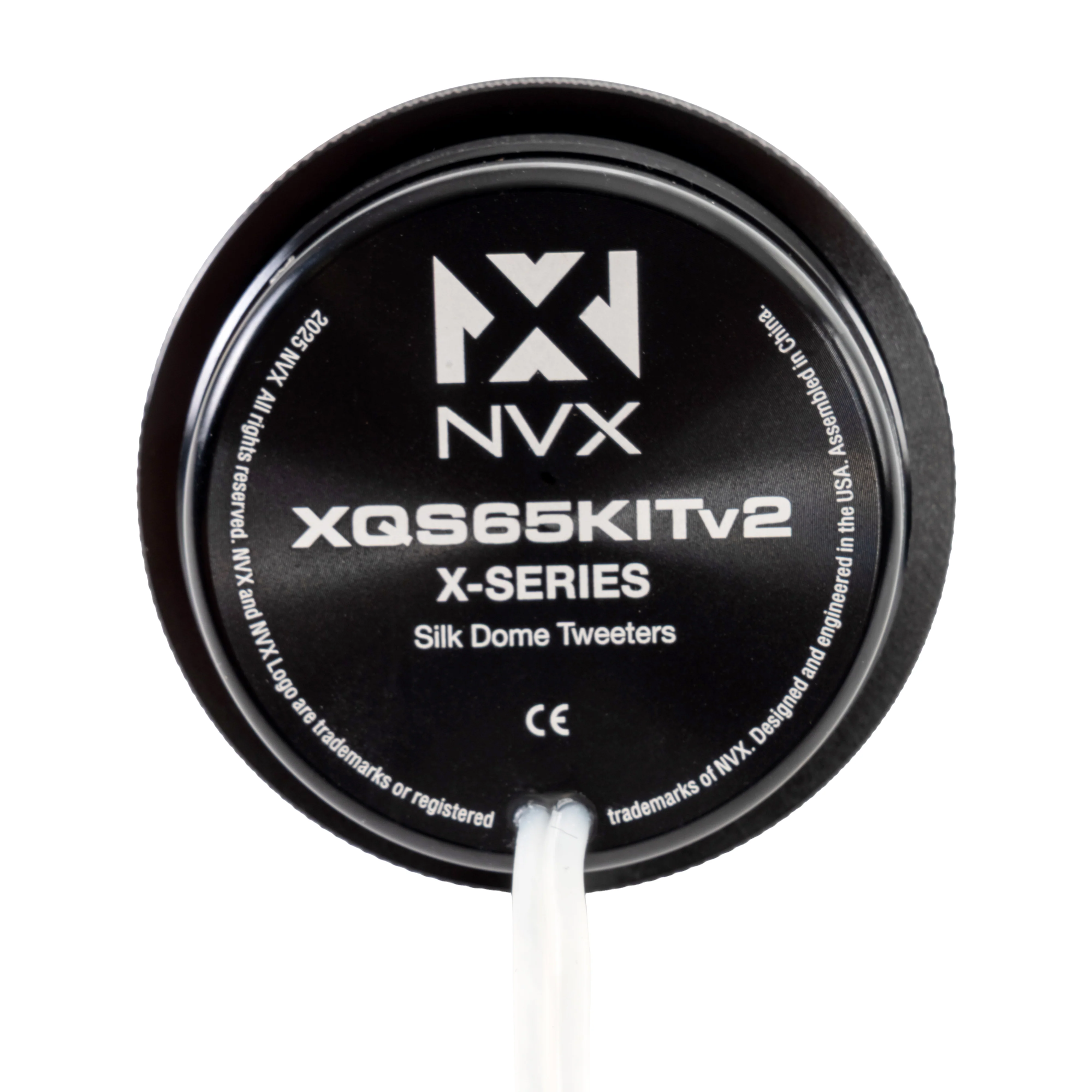

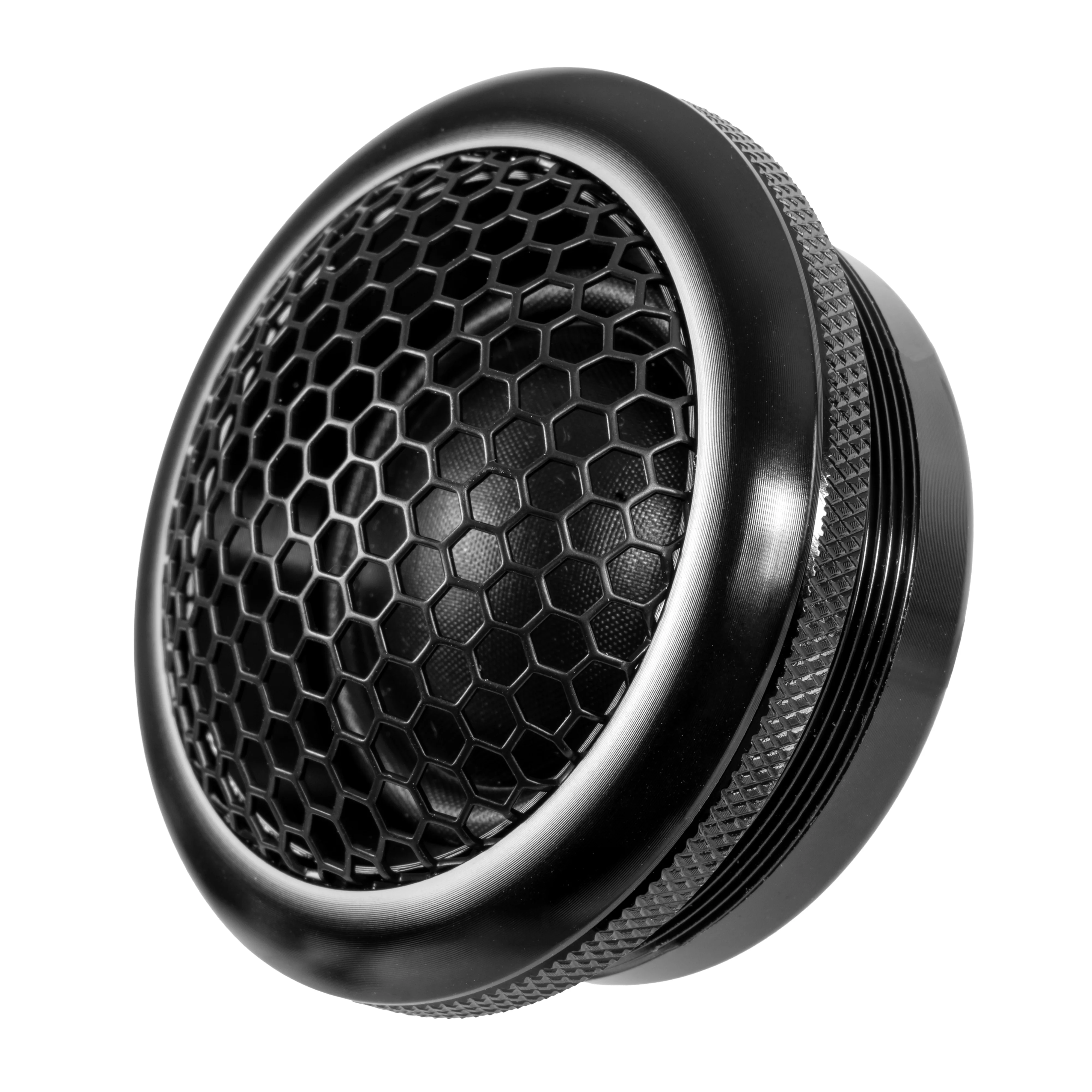

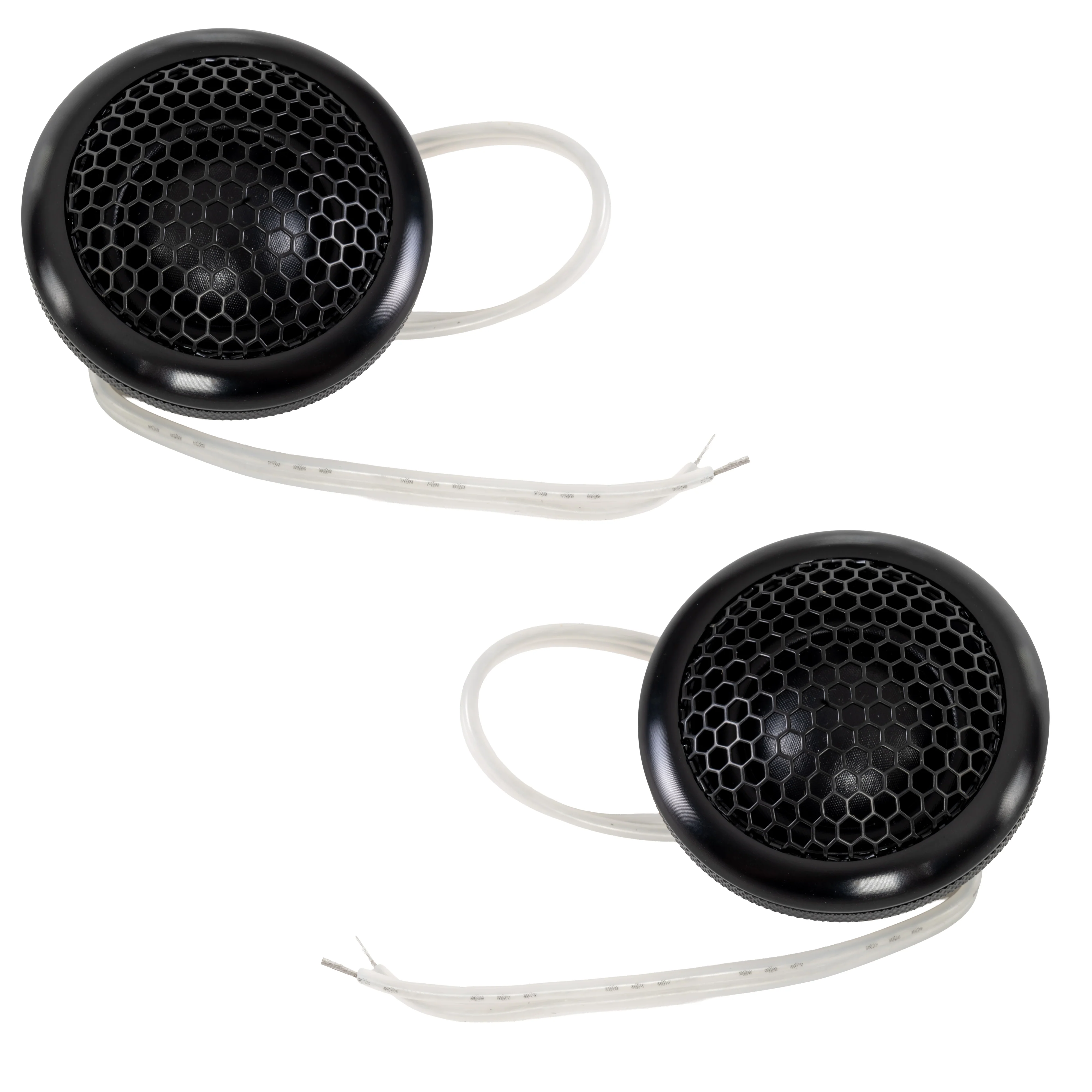

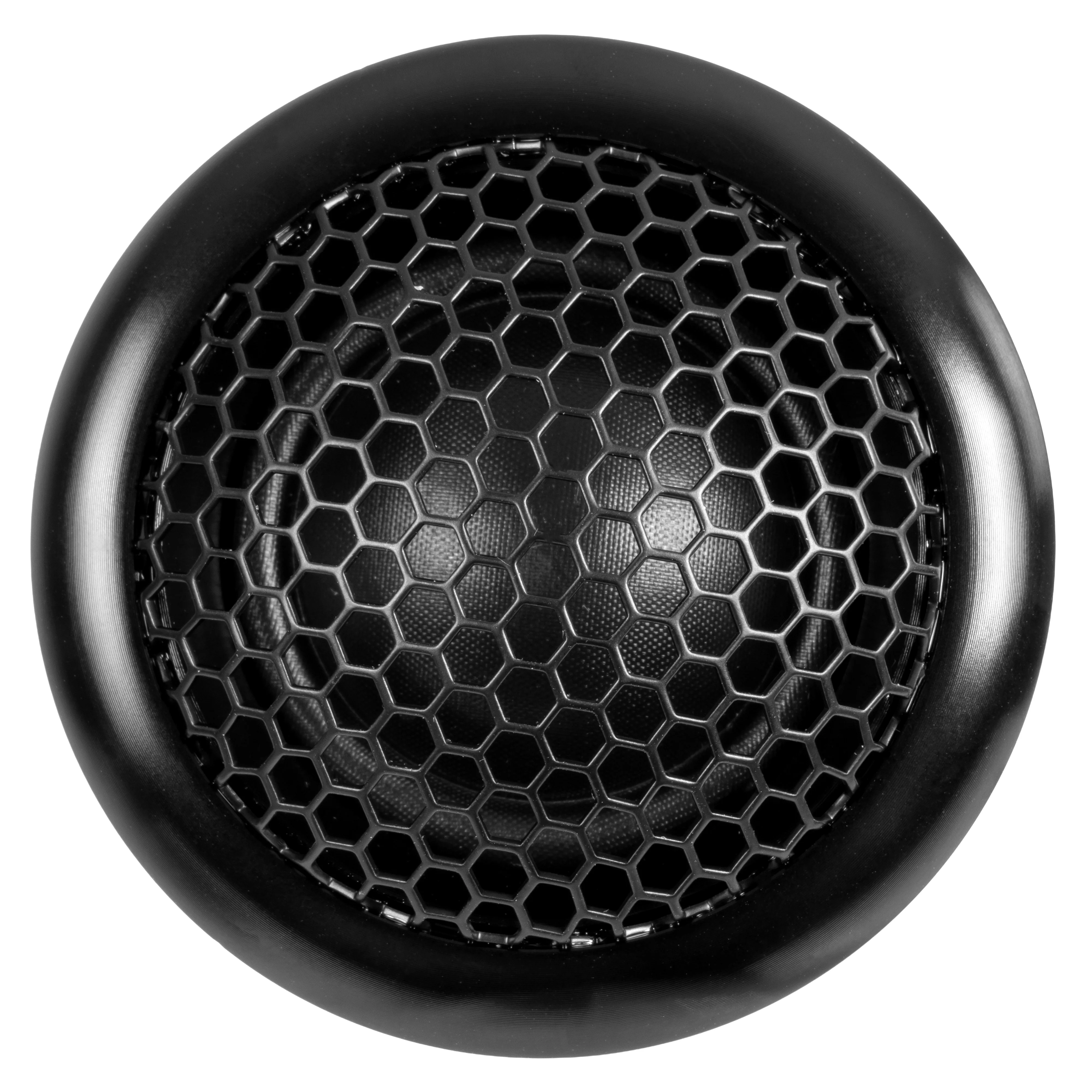

• 1-1/8" Silk Dome Tweeters with Neodymium magnet
• 1-3/16" High-Temperature voice coil (Midwoofers)

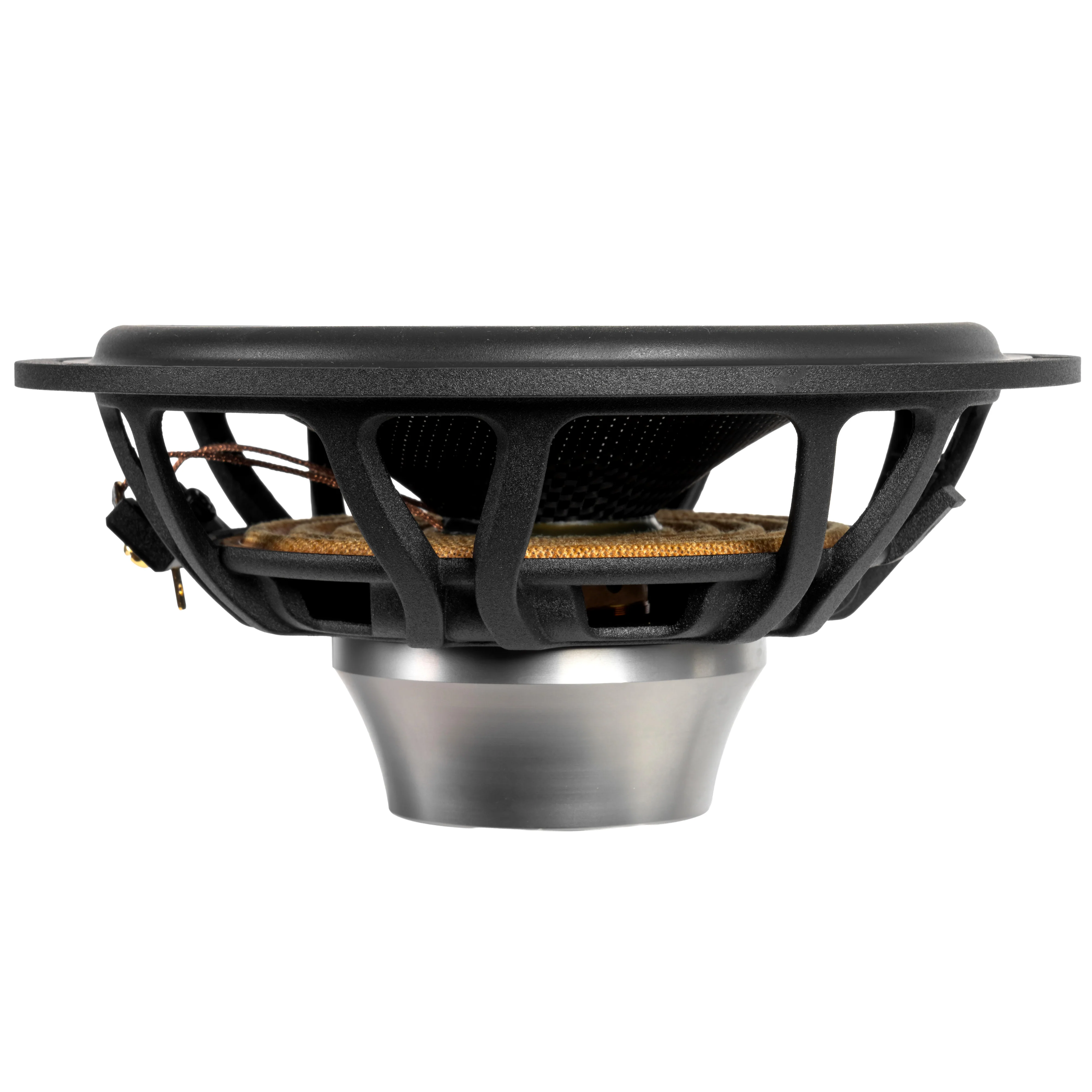

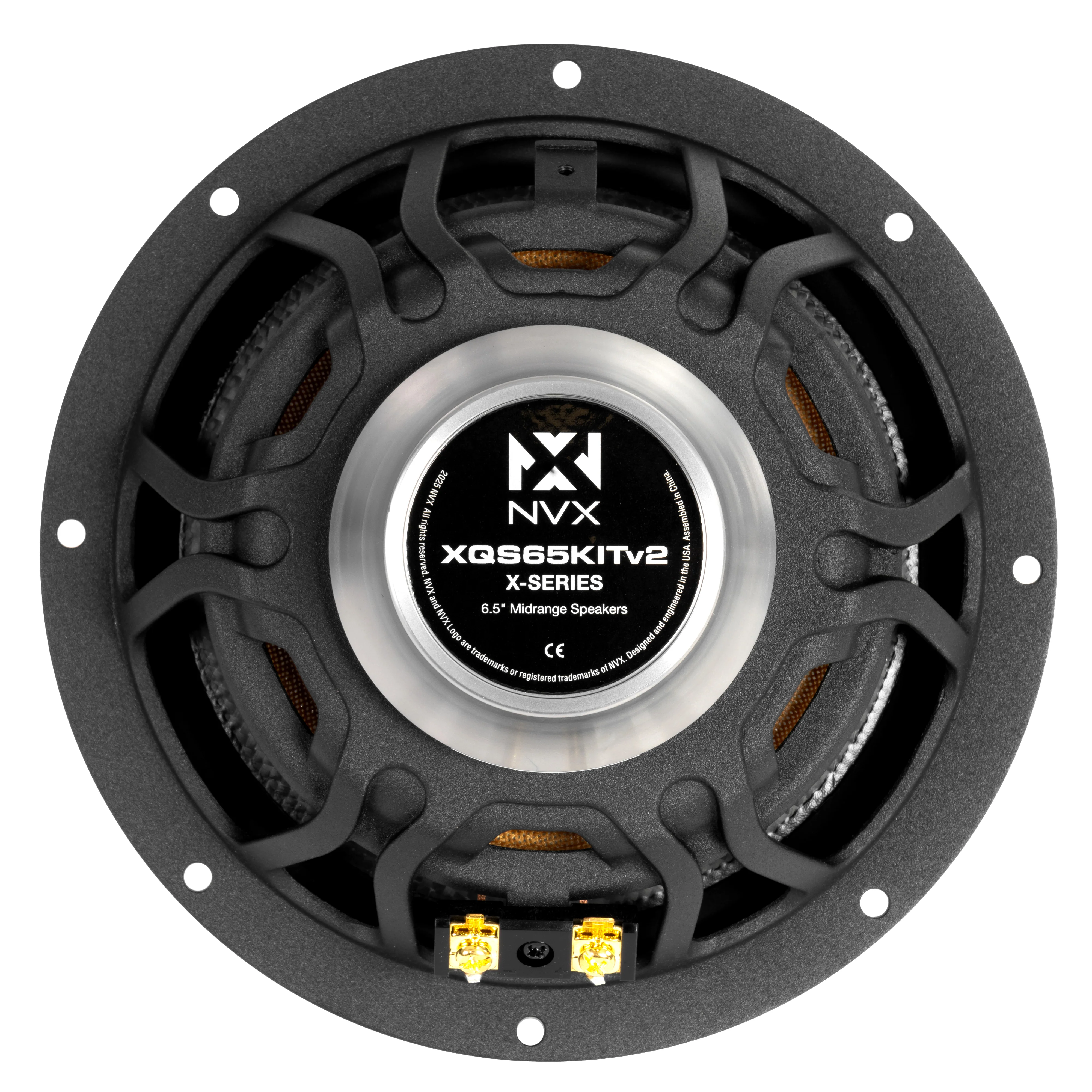

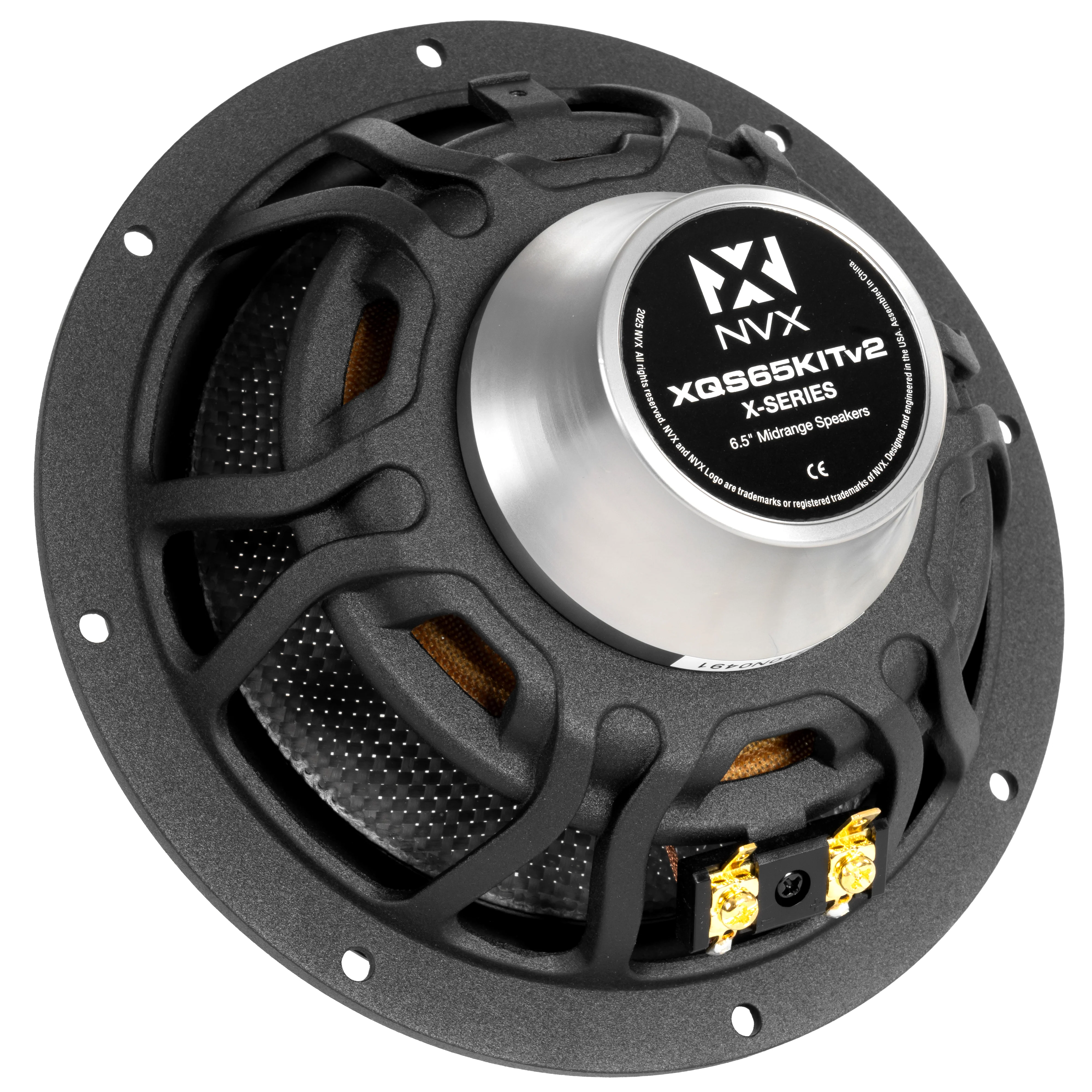

• Neodymium magnet motor structure (Midwoofers)

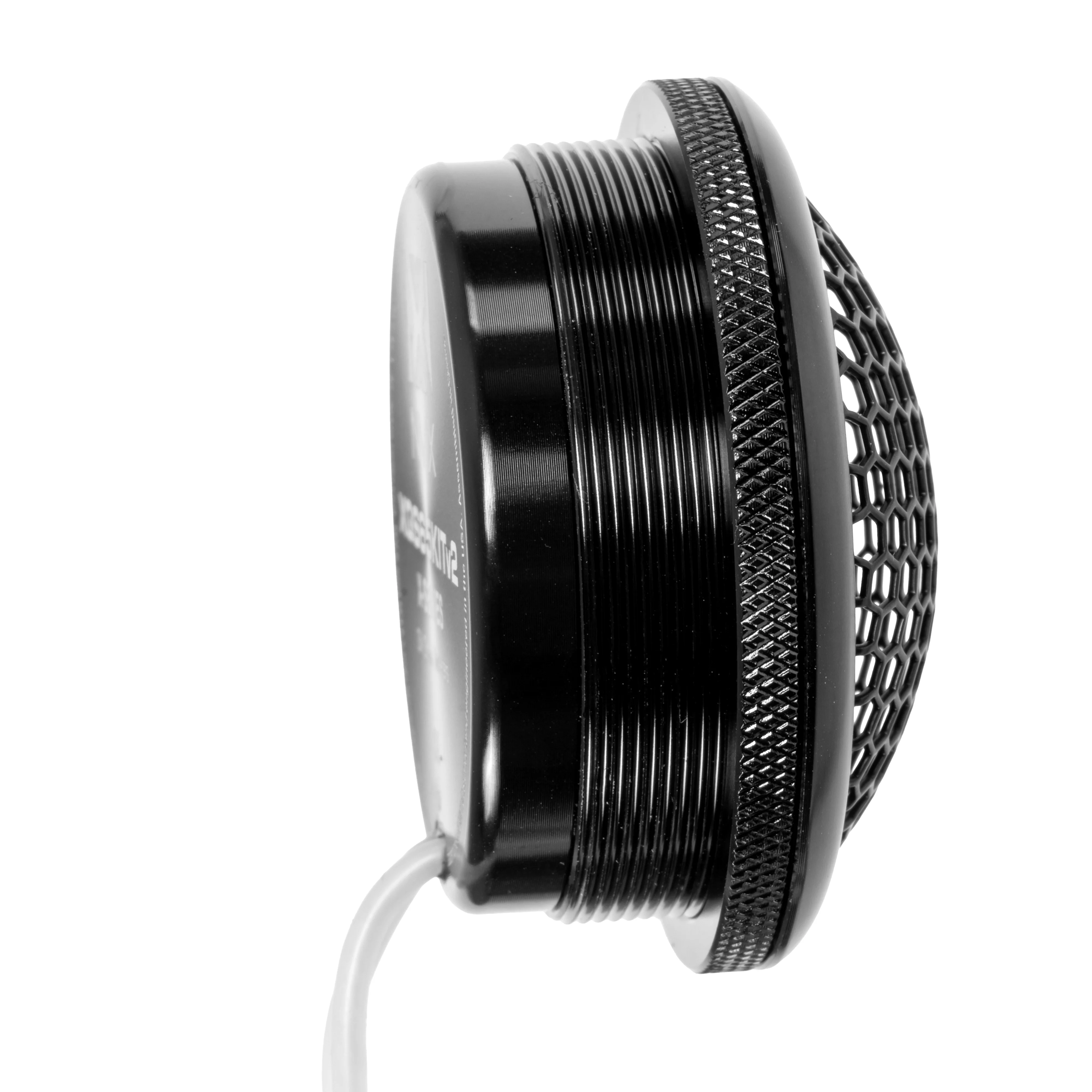

• Tweeter Mounting Depth: 0.88"
• Tweeter Cutout Dimensions: 1.96"
• Midwoofer Mounting Depth: 2.64"
• Midwoofer Cutout Dimensions: 5.68"
• Impedance: 4 ohm
• Frequency Response: 45 - 20000 Hz
• Sensitivity: 93 dB
• CEA-2031 compliant
• 1-year Warranty from the Original Purchase Date

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

T/S Parameters:

• Voice Coil Resistance (Re): 3.2 Ω
• Free Air Resonance (Fs): 50.6 Hz
• Equivalent Compliance (Vas): 21.59 L
• Electrical “Q” (Qes): 0.543
• Mechanical “Q” (Qms): 2.314
• Total Speaker “Q” (Qts): 0.44
• Moving Mass (Mms): 12.184 g
• Mechanical Compliance (Cms): 0.812 mm/N
• Magnetic Strength (BL): 4.626 T·m
• Effective Piston Area (Sd): 21.21 sq. in (0.013685 sq. m)
