NVX Single 10" Complete Bass System w/ Ported Box, Amp, and Wiring Kit
Elevate your car audio with the ultimate NVX 10-inch Subwoofer Bass Package. This compact bundle delivers a massive 500W RMS of deep, hard-hitting bass. It features one 10" NSW102v3 Dual 2-Ohm subwoofer, paired with a custom-tuned single 10" MDF ported enclosure for maximum acoustic response. Powering the system is the ultra-compact VADM1v2 Micro Class-D monoblock amplifier. By wiring the sub to a 1-Ohm load, the amp delivers a perfectly matched 600 watts of clean power. To tie it all together, we include a premium 8-Gauge OFC complete wiring kit to ensure maximum current flow. Get premium, space-saving bass in one convenient car audio kit!

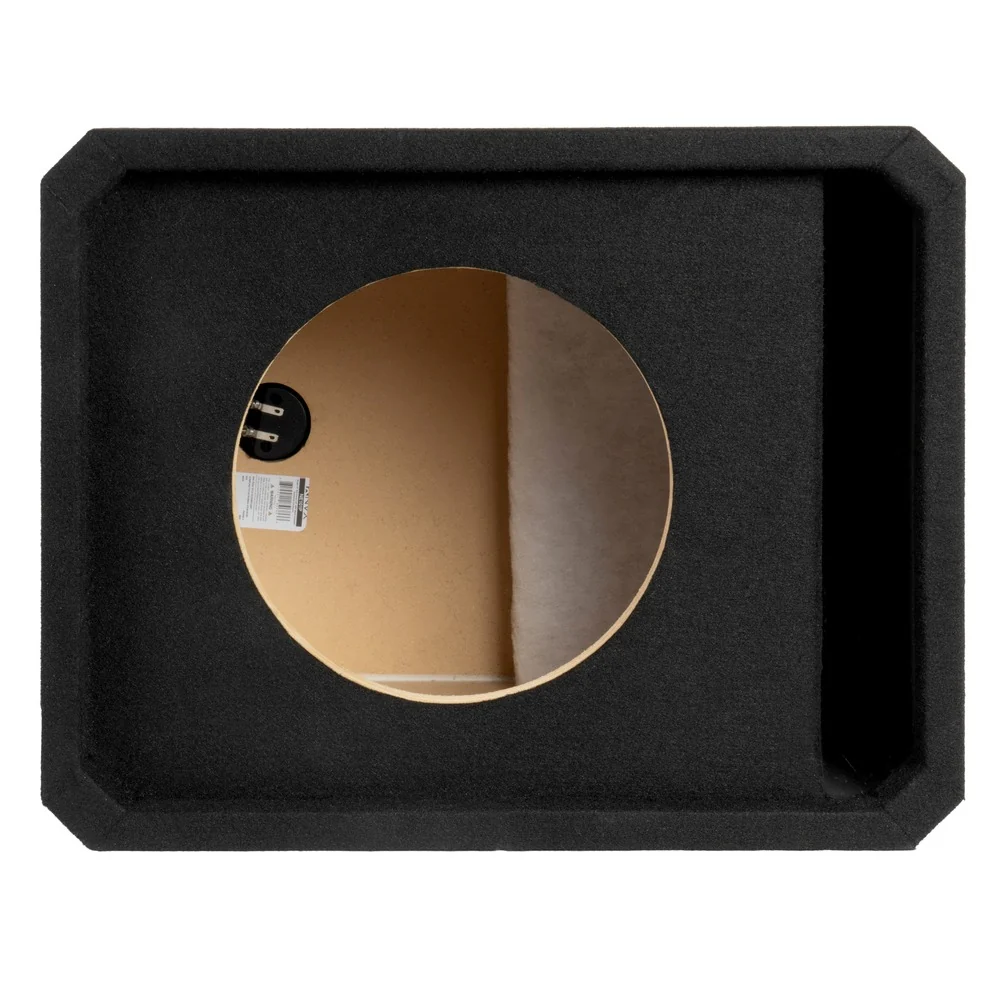

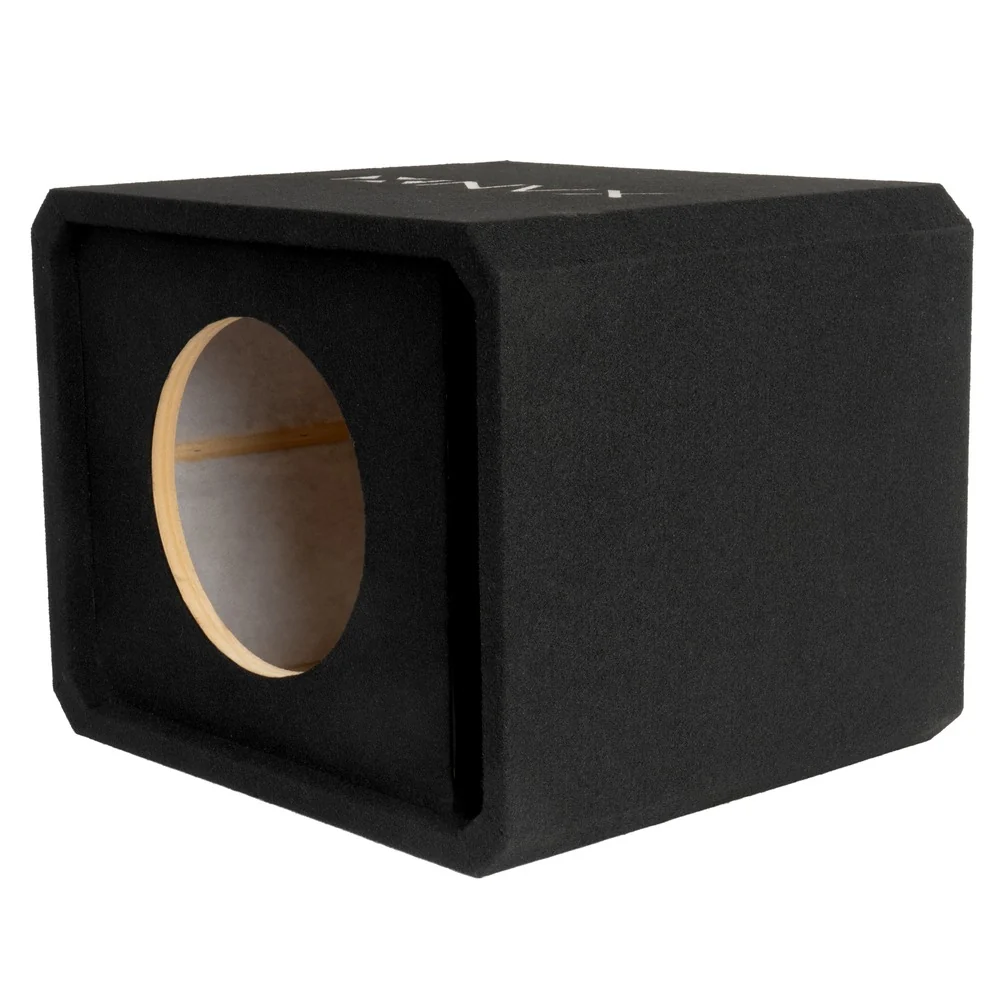

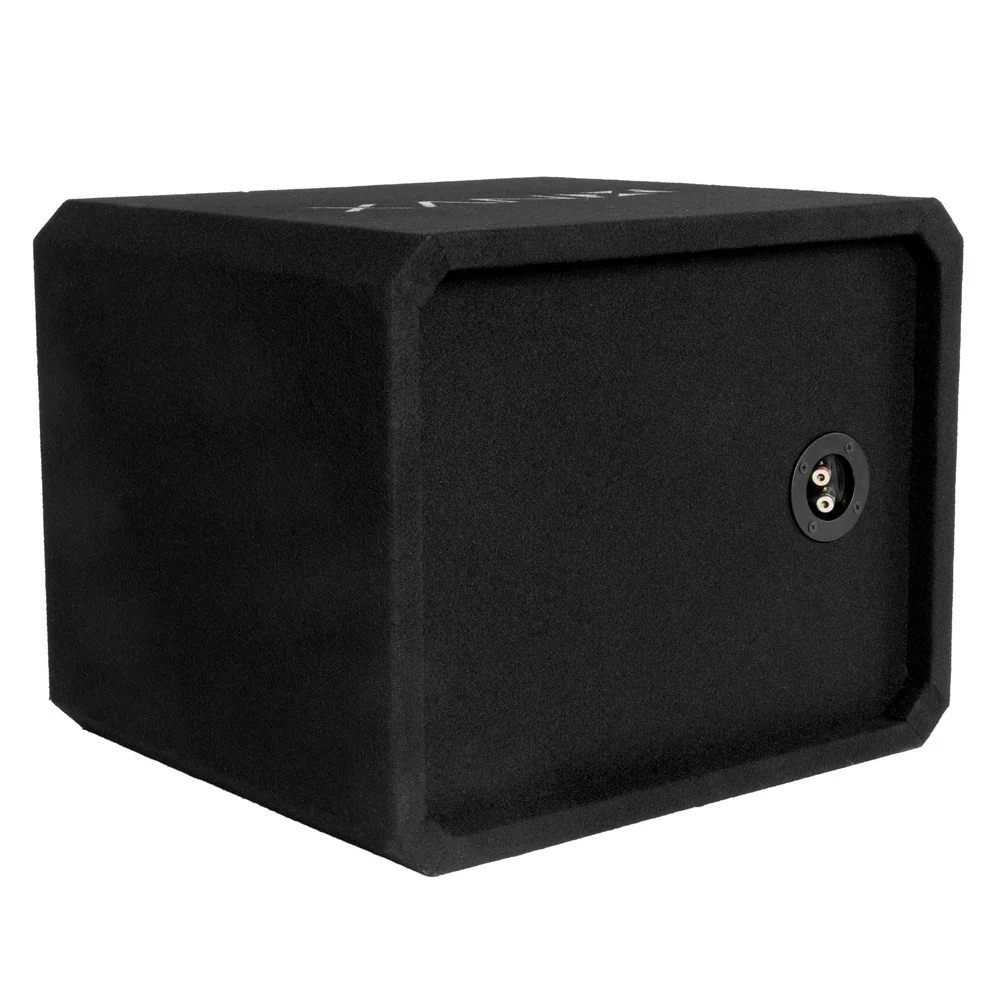

NVX NE101P
Single 10" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 1.5 Cu. Ft. with Polyfil and NVX Logo
Quantity: 1
Product Details:
- 10" Single Ported Subwoofer Enclosure
- Made from 3/4" Medium Density Fiberboard (MDF) construction
- Built with precision CNC technology for exceptional accuracy
- Pre-lined with Poly-Fil for improved acoustic response
- Premium Black Carpet with Black NVX Logo
- Spring Loaded Push Terminals
- Maximum subwoofer mounting depth: 13-7/8"
- Subwoofer cutout diameter: 9-1/4"
- Internal box volume: 1.50 cubic feet
- Port Tuning Frequency (Fb): 38 Hz
- Dimensions: 16.50" D x 19.00" W x 15.00" H
- Authorized Internet Dealer
- 1-year Sonic Electronix Warranty
Port Specifications:
- Tuning Frequency: 38 Hz
- Port Width: 1.5"
- Port Height: 13.50"
- Port Length: 19.85"

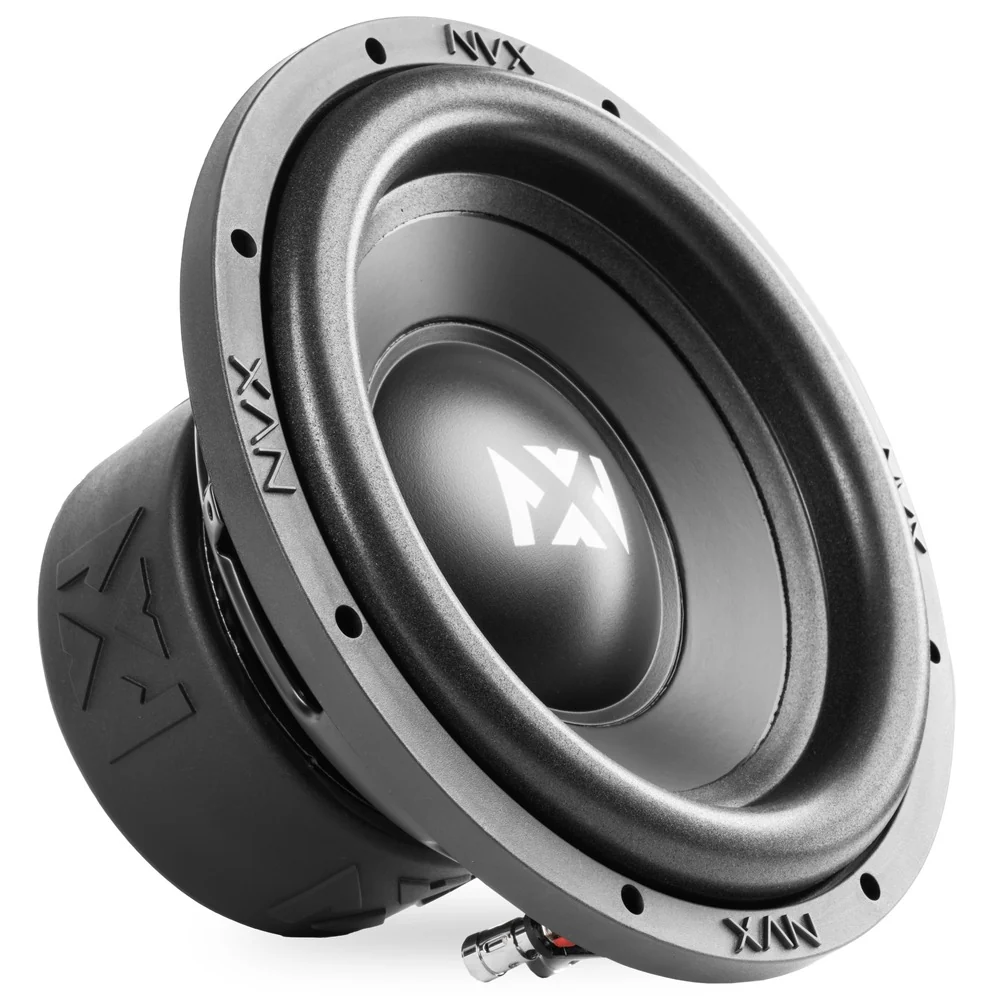

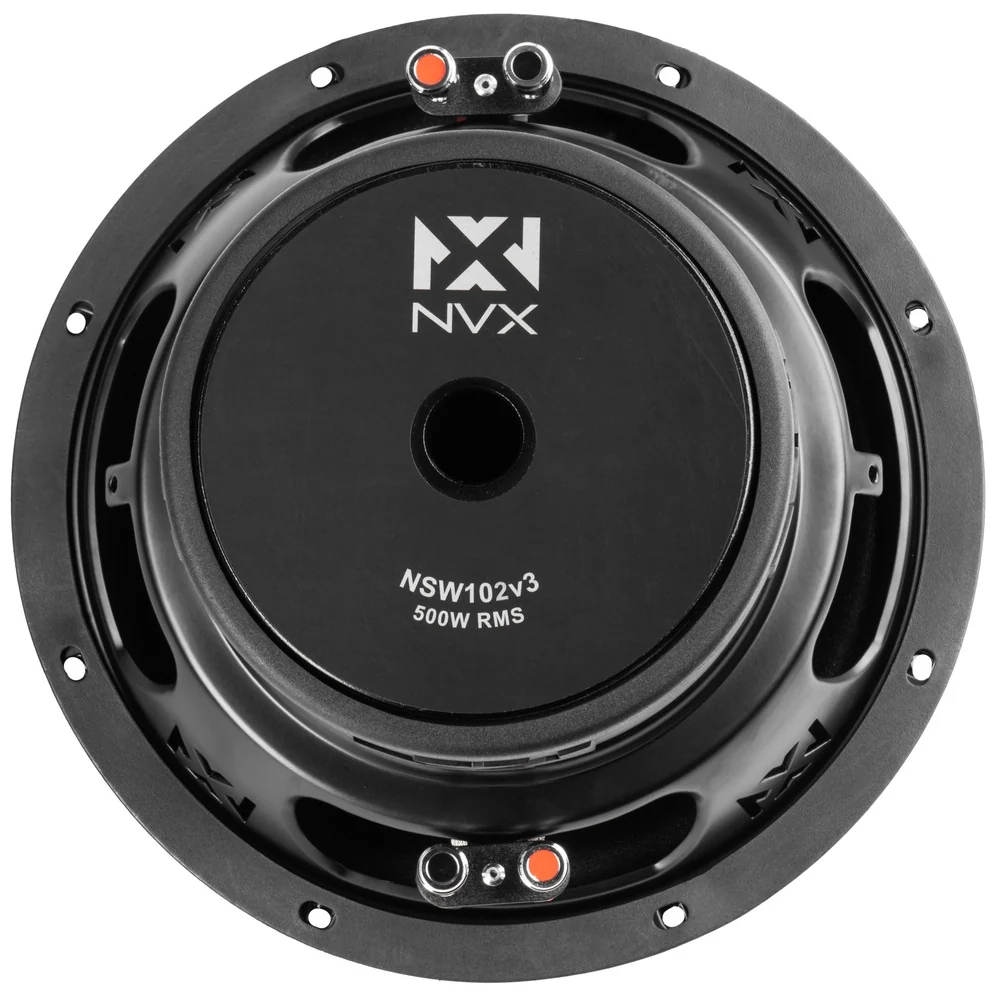

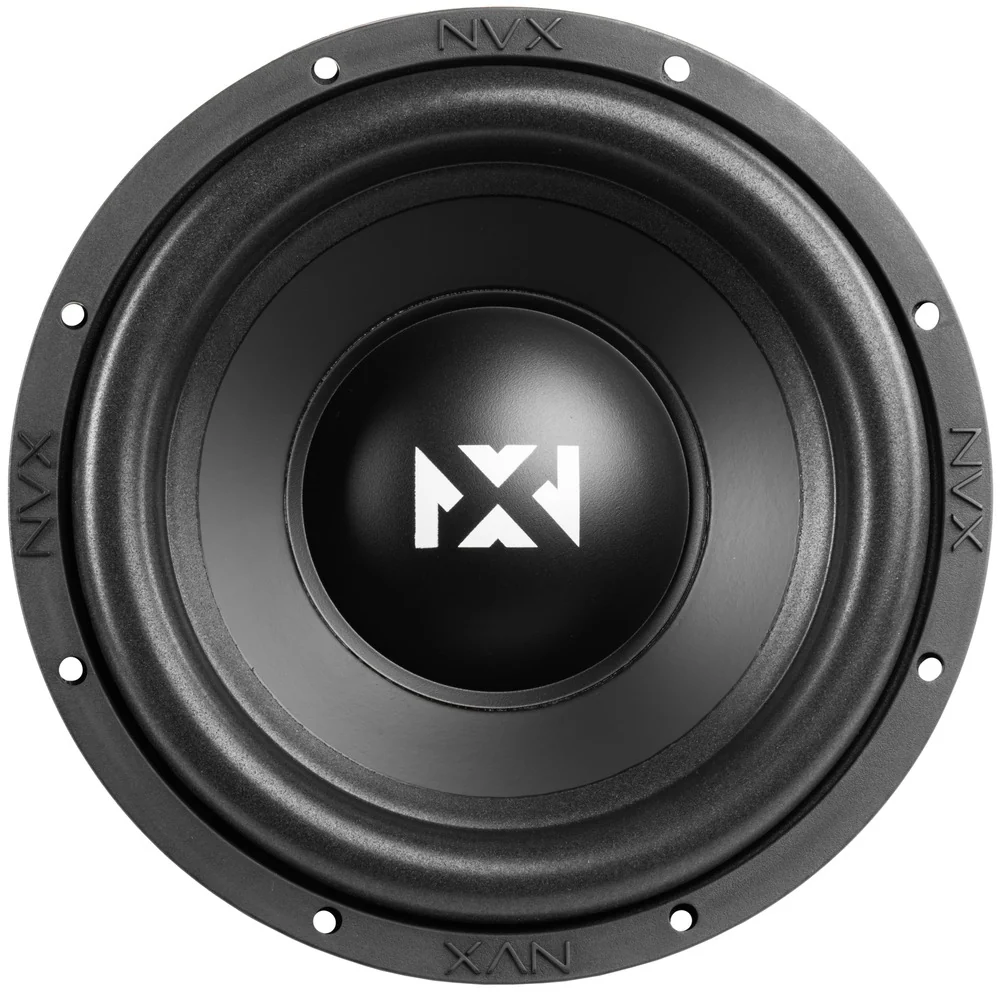

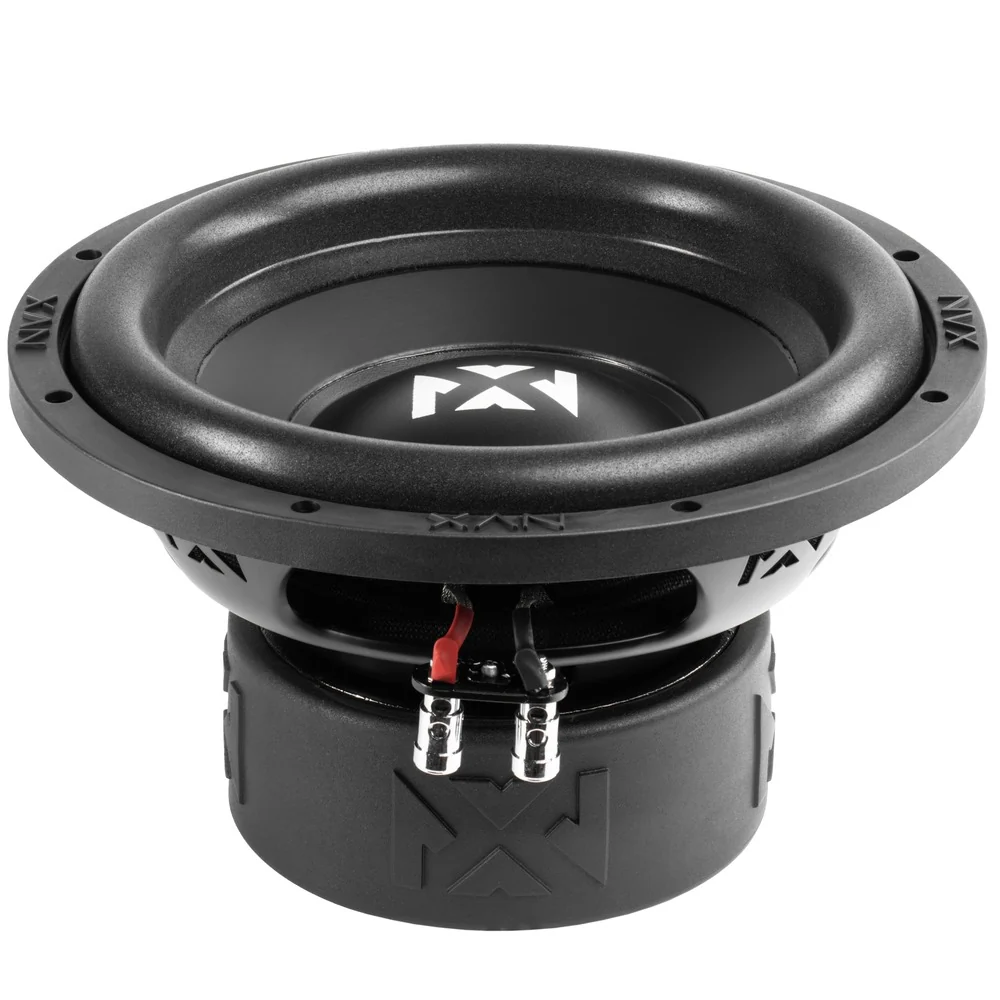

NVX NSW102 Version 3 (NSW102v3)
1000W Peak (500W RMS) N-Series v3 10" Dual 2-Ohm Car Subwoofer
Quantity: 1
Product Details:
- 10" Dual 2 ohm N-Series Subwoofer
- Power Handling:
- Peak: 1000 watts
- RMS: 500 watts
- 12.5 mm Xmax
- Enhanced Pressed Paper Cone
- High-Roll Foam Surround
- Stamped Steel Vented Basket with NVX Punched Logo
- 2" High Temperature Copper Voice coil with Aluminum Former
- Progressive Roll Single-layer Spider with Integrated Tinsel Leads
- Optimized High-Velocity Pole Vent
- 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
- Frequency Response: 20 - 200 Hz
- Resonance Frequency (Fs): 38.67 Hz
- Sensitivity: 85 dB
- Recommended sealed box volume: 0.60 cubic feet
- Recommended ported box volume: 1.5 cubic feet
- Top-mount depth: 5.36"
- Cutout diameter: 8.97"
- CTA-2031 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

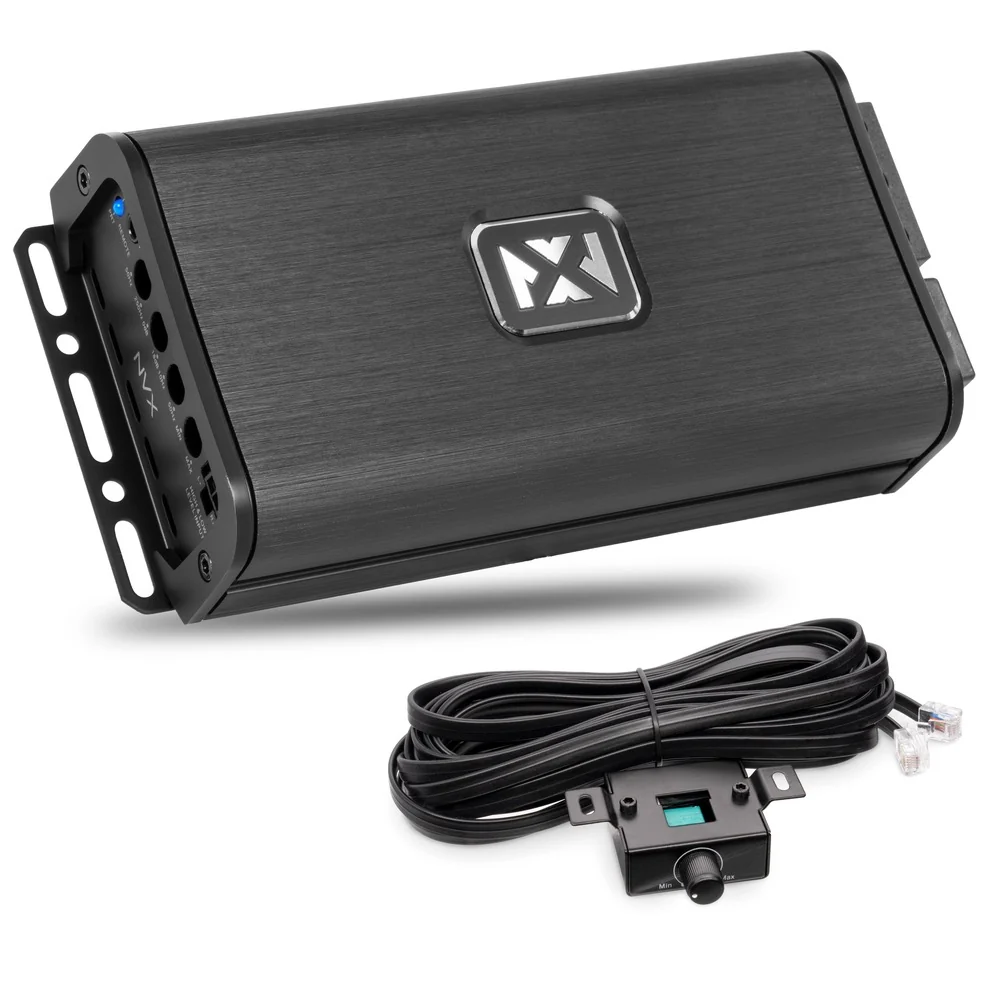

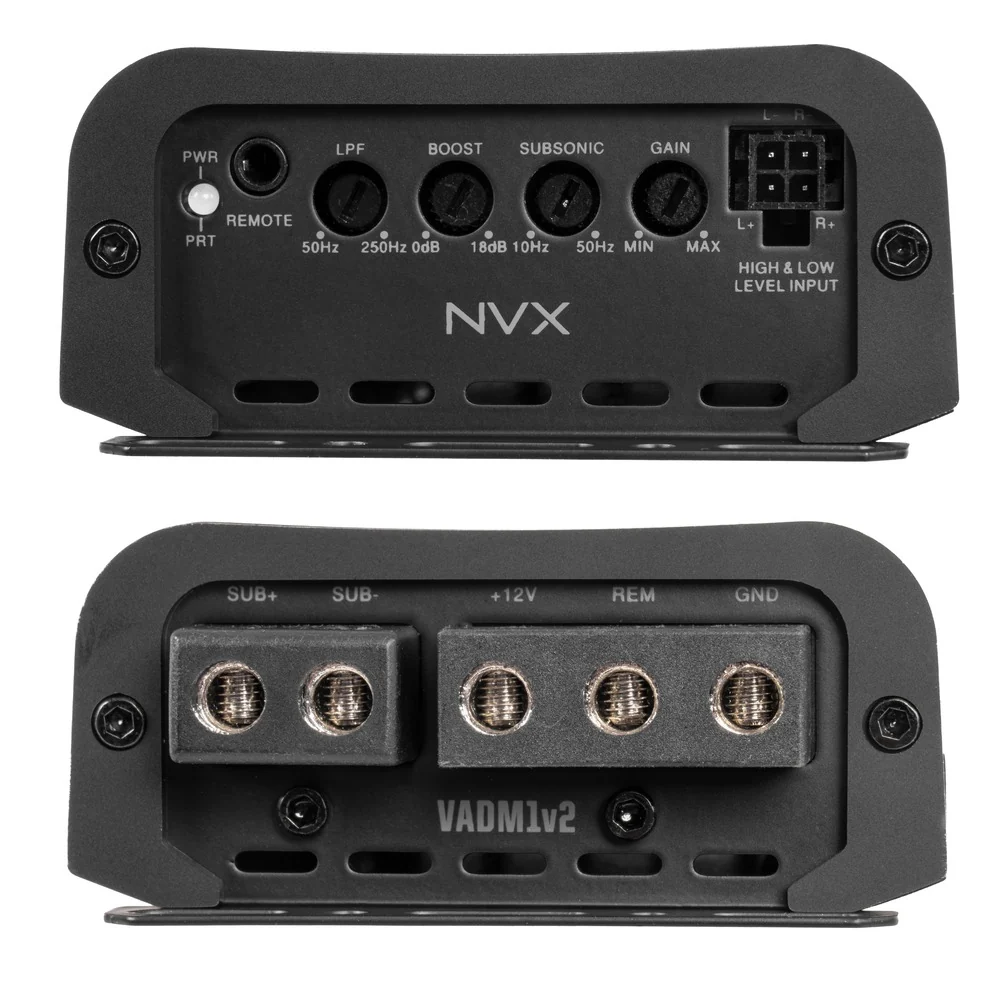

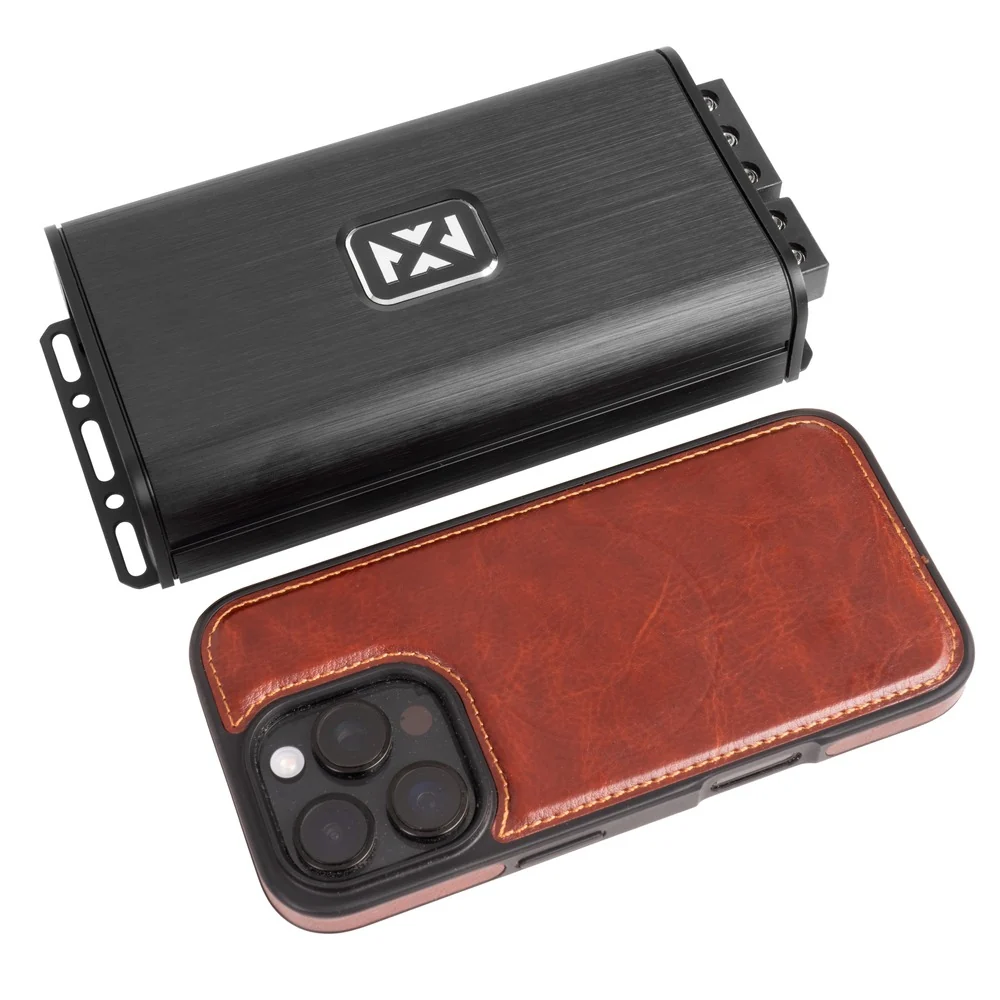

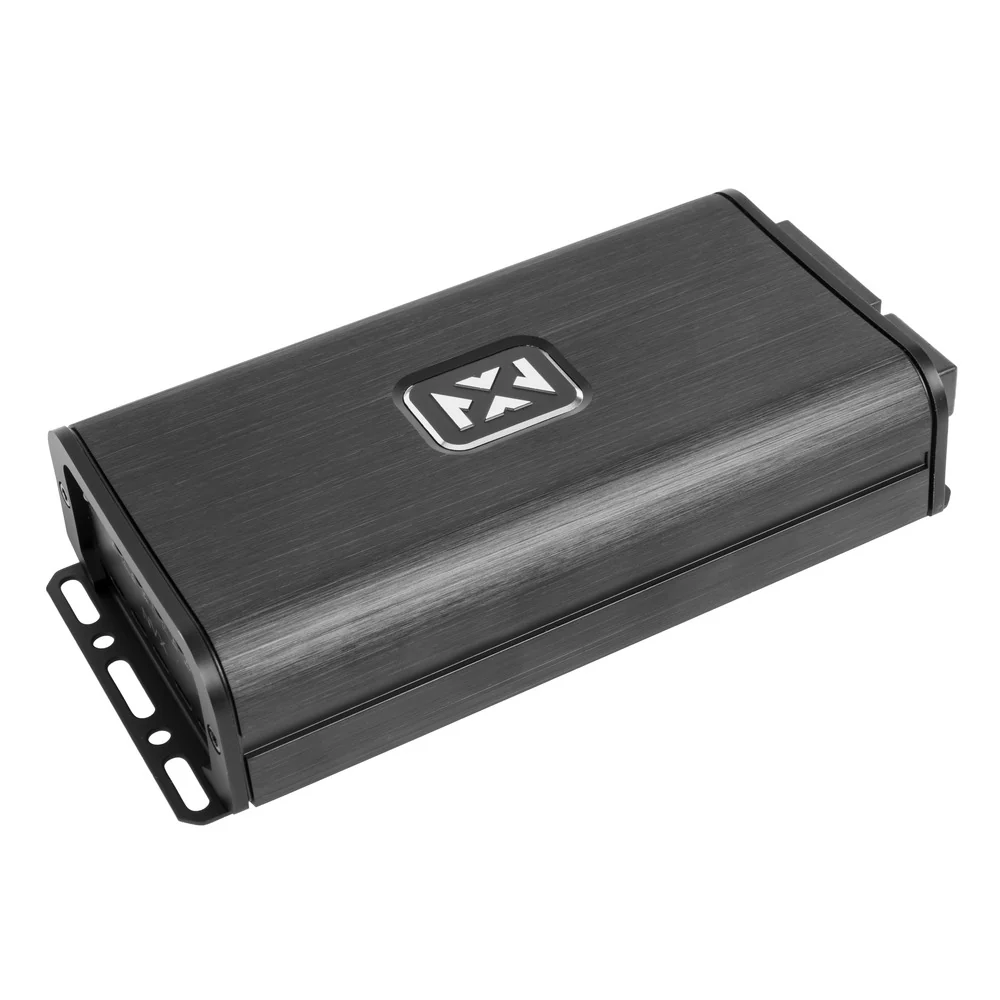

NVX VADM1 v2 (VADM1v2)
600W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1
Product Details:
- V Series Micro Class D 1 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 240 watts x 1 channel
- 2 ohm: 400 watts x 1 channel
- 1 ohm: 600 watts x 1 channel
- Total power output: 600 watts
- LED Power/Protect Light
- Includes a Wired Bass Level Remote Control
- Speaker-level (high-level) inputs
- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables
- Input sensitivity:
- Low level and High level: 0.2 - 10 volts
- Frequency Response: 20 - 500 Hz
- Total Harmonic Distortion (THD): 0.3%
- Signal to Noise Ratio: >85 dB
- Variable low-pass filter: 50 - 250 Hz
- Subsonic filter: 10 - 50 Hz
- Variable Bass Boost: 0 - 18 dB @ 45 Hz
- 8 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 6.49" L x 3.3" W x 1.48" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: VADM1v2

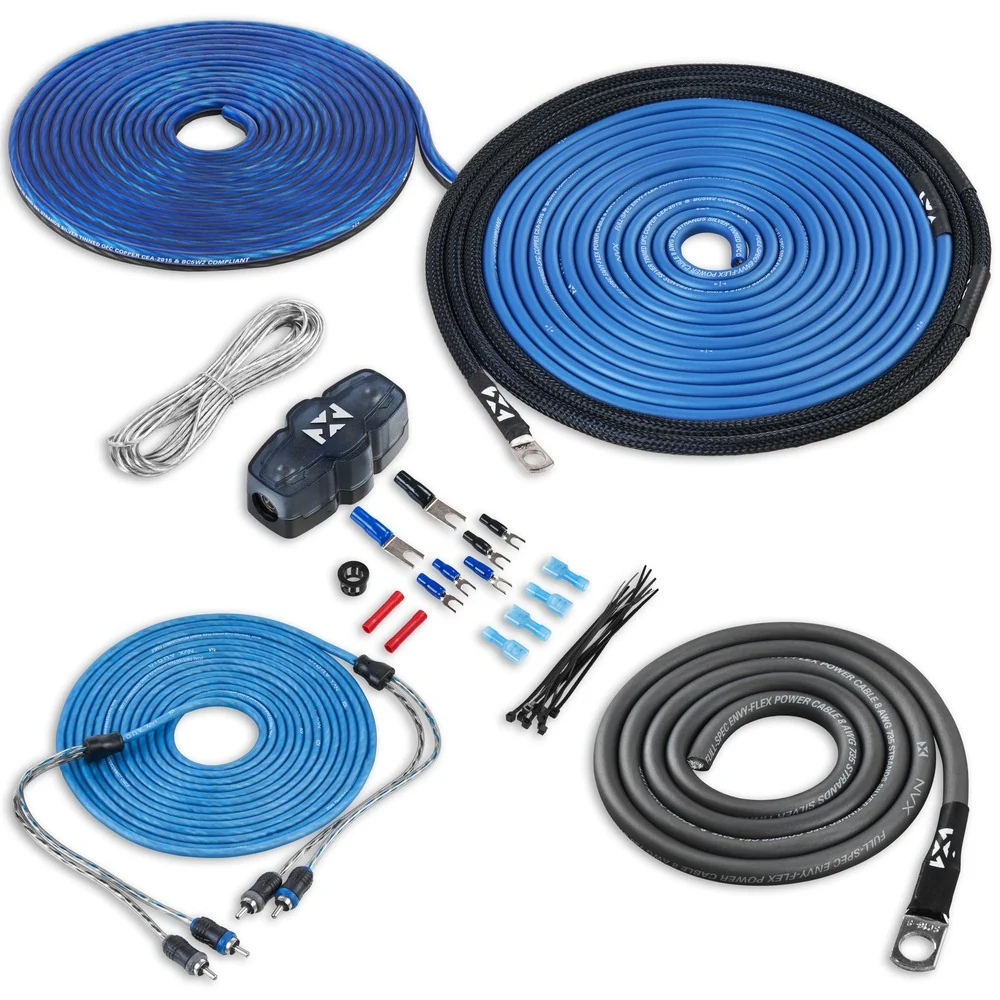

NVX XKIT82
Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1
Product Details:
- 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 800 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant
- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

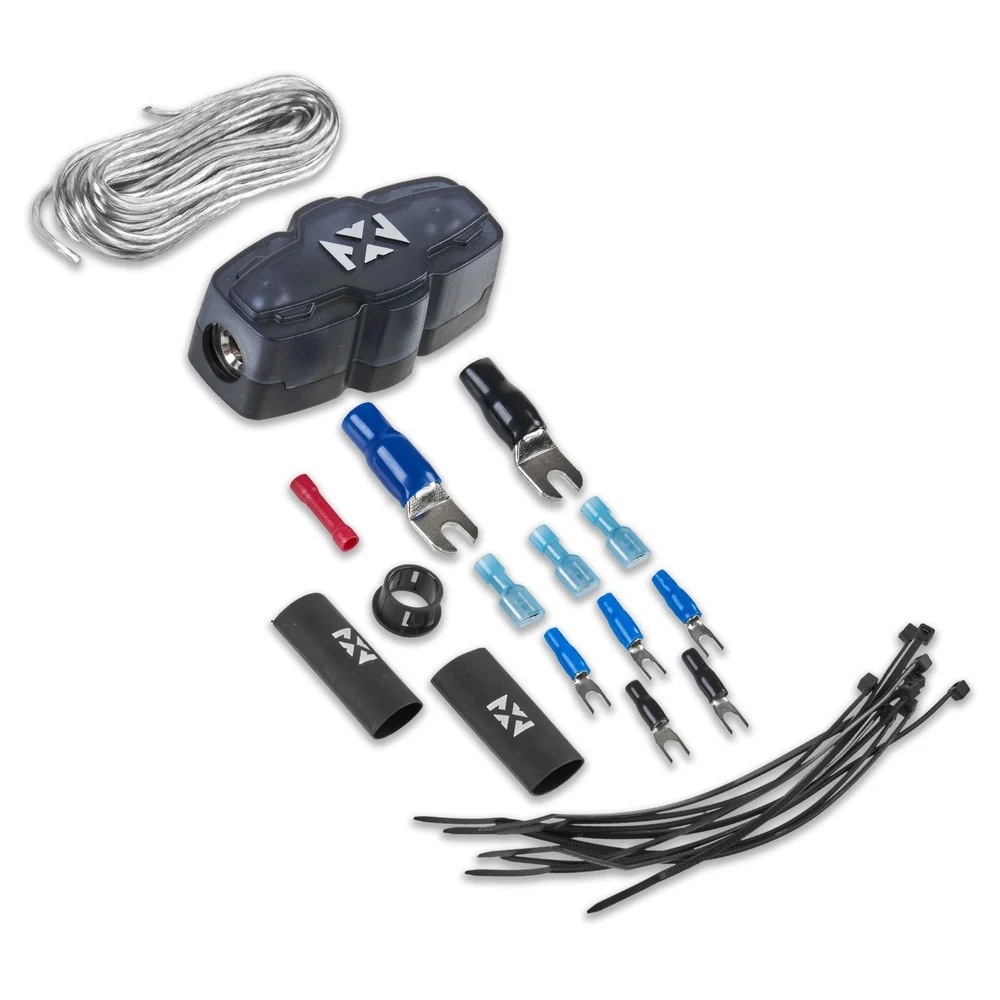

Kit includes:
- 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 8 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
